61 34... Removing and installing/replacing 12-V power socket

Special tools required:

Necessary preliminary tasks:

Open flap in luggage compartment panel on right

Check the equipment dependent sockets that are available.

Cup holder:

Feed out the associated cable on the underside of the cup holder (2).

Remove the power socket (1) from the cup holder (2) using the special tool 61 0 250 .

See last operation.

Fig 1: Identifying Power Socket From Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Center console storage compartment

Remove the power socket (1) from the center console storage compartment (2) using the special tool 61 0 250 .

See last operation.

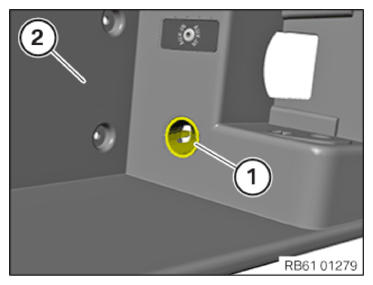

Fig 2: Identifying Power Socket From Center Console Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Rear bottom storage compartment

Remove power socket (1) from the center console trim using special tool 61 0 250 .

See last operation.

Fig 3: Identifying Power Socket From Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Open flap in luggage compartment trim panel on right.

Put your hand behind the right luggage compartment wheel arch panel.

Detach connector (1) from power socket (2).

Fig 4: Identifying Connector From Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Fold up the protective cap over power socket (1).

Fig 5: Identifying Luggage Compartment Protective Cap Over Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Remove socket (1) using special tool 61 0 250 .

See last operation.

Fig 6: Identifying Luggage Compartment Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out 12-V power socket from housing with special tool 61 0 250 until connector is at bottom of light ring.

Fig 7: Removing 12V Socket Using Special Tool (61 0 250)
