61 13... In-line plugs, 6- to 50-pin, System Elo

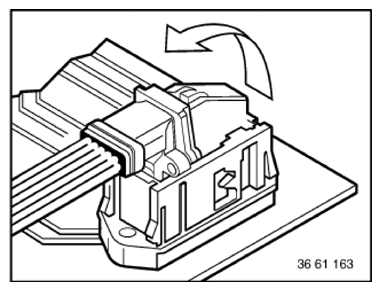

Open lock.

Fig 1: Opening 6- 50-Pin, System Elo Lock

Courtesy of BMW OF NORTH AMERICA, INC.

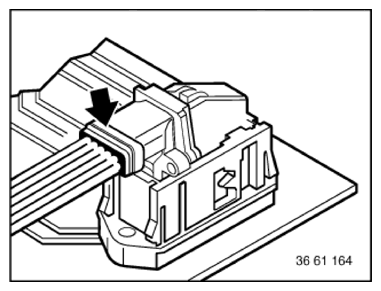

Detach cable strap.

Installation note:

Cable strap must be reinstalled.

Fig 2: Locating 6- 50-Pin, System Elo Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

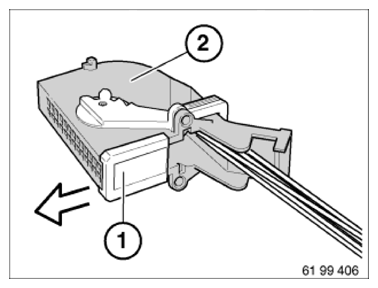

Detach catch (1) from connector housing (2).

Fig 3: Removing Catch From Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

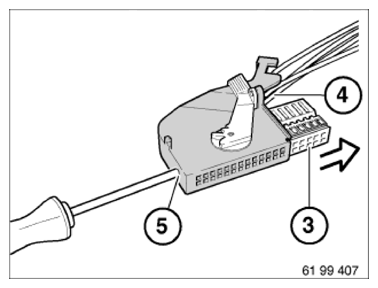

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Removing Contact Carrier With Wiring Harness Through Opening

Courtesy of BMW OF NORTH AMERICA, INC.

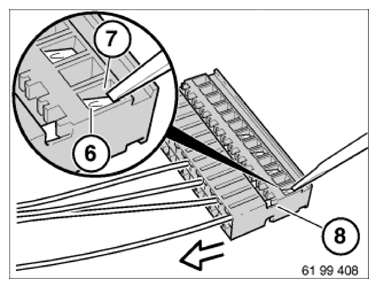

Hold down retaining hook (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Holding Defective Contact Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

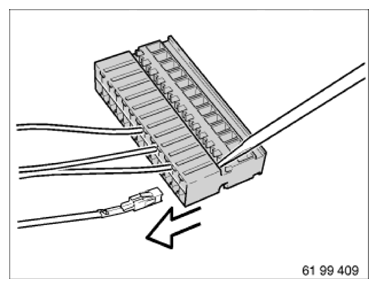

Hold down retaining hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Removing Cable And Contact From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
