Removing and installing (replacing) Touchbox controller control unit (X5 M)

Necessary preliminary tasks:

• Remove COMPLETE CENTER CONSOLE .

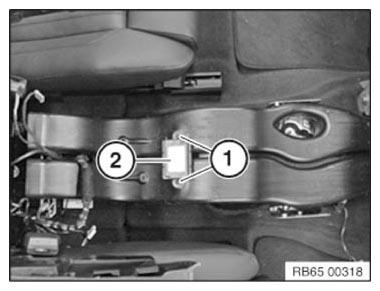

Version with air duct:

Loosen the screws (1).

Remove Touchbox (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Version without air duct:

Unfasten plug connection (1) and disconnect.

Release latch mechanisms at marked points.

Remove Touchbox (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .
