Removing and installing/replacing steering column (X5 M)

IMPORTANT: To avoid damaging the coil spring cassette, the steering wheel has to be removed because of the absence of an electronic steering lock!

Necessary preliminary tasks:

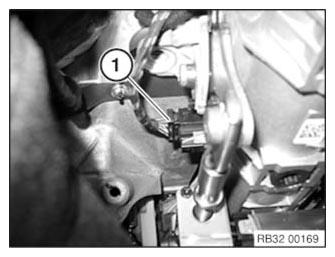

Unplug electrical connectors (1) and unclip wiring loom from steering column.

Installation note:

Replace damaged wiring harness mounting.

Make sure wiring harness is in correct position.

Courtesy of BMW OF NORTH AMERICA, INC.

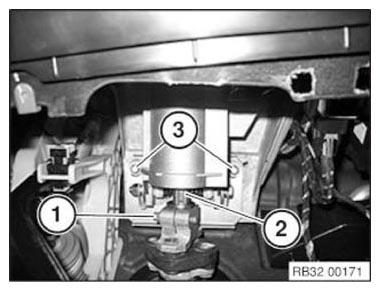

Release clamping bolt (1) and slide shaft (2) into steering column.

Installation note:

Recut thread in steering spindle.

Replace clamping bolt.

Clamping screw must rest in groove of upper steering spindle.

No retorquing permitted!

Tightening torque 32 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (3).

Tightening torque 32 31 1AZ .

Secure steering column against falling out.

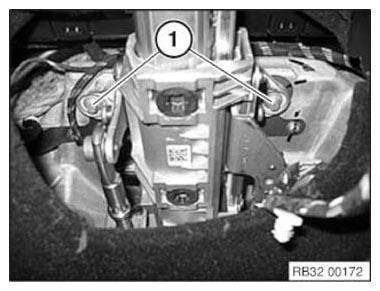

Release screws (1).

Tightening torque 32 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove steering column to the rear.

Installation note:

When inserting steering column, make sure guide (1) is correctly fitted in dashboard carrier.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Vehicles with active steering: Carry out steering angle sensor adjustment/alignment for active front steering
Carry out NORMALIZATION of electric steering column adjustment
Turn steering wheel in both directions to the limit position. The airbag indicator light must not light up in the process.
Check directional stability of vehicle
