12 61 280 Removing and installing/replacing oil pressure sensor
WARNING:
High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:
Compliance with the following points is mandatory before beginning work:
- De-energize the HIGH-VOLTAGE SYSTEM .
- Observe SAFETY INFORMATION for working with electric vehicles.
Necessary preliminary tasks:
- Remove SERVICE CAP IN LUGGAGE COMPARTMENT .
- Remove right HORIZONTAL STRUT .
WARNING:
Risk of burning!
Only perform this repair work on an engine that has cooled down.
Only perform this repair work on an engine that has cooled down.
NOTE:

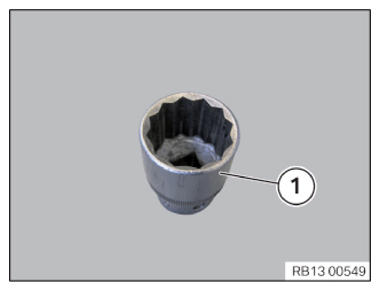

Use a SW24 bihexagonal socket to release and tighten the oil pressure sensor.

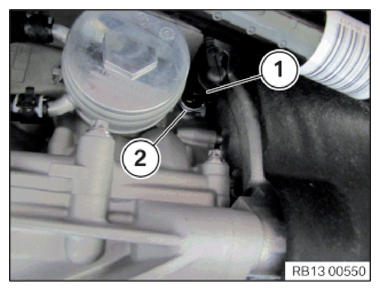

Unlock connector (1) and remove.
Release oil pressure sensor (2).
Tightening torque 12 61 1AZ .
Installation note:
Check engine oil level. Top up engine oil if level is too low.
