61 12 970 Reworking the charging power socket

Necessary preliminary work:

• Remove CONTROLLER DRIVE FOR CHARGING POWER SOCKET

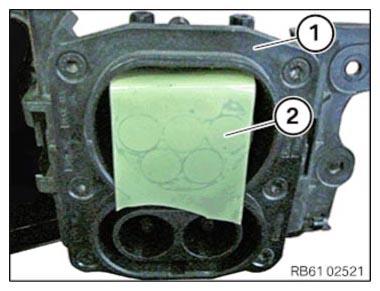

Mask off charging power socket (1) with adhesive tape (2) as shown.

Fig 1: Identifying Charging Power Socket With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

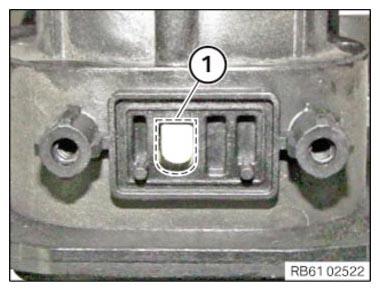

Fig 2: Identifying Opening With Small Flat File

Courtesy of BMW OF NORTH AMERICA, INC.

Work on the flat sides of opening (1) with a small flat file.

Work on the round side of opening (1) with a small round file.

Enlarge opening (1) as pictured by approximately 0.3 mm  per side.

Required follow-up work:

• INSTALL CONTROLLER DRIVE FOR CHARGING POWER SOCKET
