6312... US version: Remove the horizontal blocking before adjusting the headlight

Special tools:

• 23 0 490

Check:

Check the adjustment screw for horizontal adjustment for blockage (schematic illustration. If necessary, consult the vehicle specific service information on headlight adjustment for the exact positioning of the adjustment screws.)

Desired state:

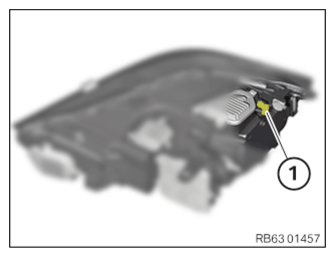

The adjustment screw for horizontal adjustment must be blocked with a plug (1) (schematic illustration)

Courtesy of BMW OF NORTH AMERICA, INC.

Result:

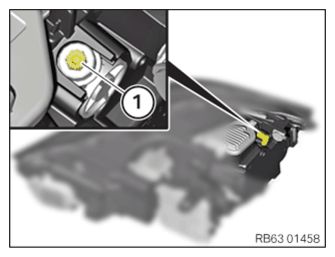

The plug (1) is installed in the adjustment screw for horizontal adjustment (schematic illustration)

Courtesy of BMW OF NORTH AMERICA, INC.

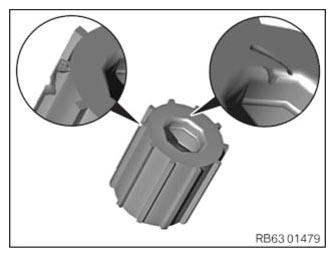

The plug (1) shows damages/deformations on the ribs/borings  which point to possible manipulations of the headlight adjustment.

Courtesy of BMW OF NORTH AMERICA, INC.

Measure:

Remove the blocking from the adjustment screw for horizontal adjustment.

To prevent damages to the vehicle, fix the impact weight (2) of the special tool 23 0 490 by applying adhesive tape (1) near the handle.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the special tools into the 23 0 490 plugs and remove the adjusting screw with a pulling motion (schematic illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

Result:

The plug (1) is installed in the adjusting screw for horizontal adjustment and show no damages/deformations  which point to possible manipulations of the headlight adjustment (schematic illustration).

Measure:

No check and/or adjustment of the horizontal adjustment is necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
