Functional networking

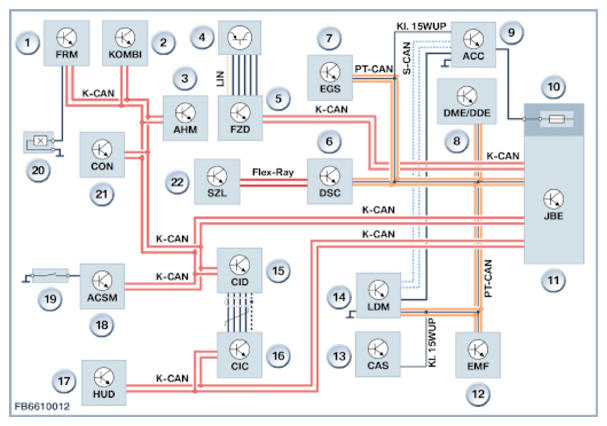

Displayed E70, E71
| Item | Description |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | Instrument panel (KOMBI) |
| 3 | Trailer Module (AHM) |
| 4 | Rain-light-solar-condensation sensor |
| 5 | Roof function center (FZD) |
| 6 | Dynamic stability control (DSC) |
| 7 | Electronic transmission control (EGS) |
| 8 | Digital Motor Electronics or Digital Diesel Electronics (DME or DDE) |
| 9 | Active cruise control (ACC) |
| 10 | Junction box fuse |
| 11 | Junction box electronics (JBE) |
| 12 | Electromechanical parking brake (EMF) |
| 13 | Car Access System (CAS) |
| 14 | Longitudinal Dynamics Management (LDM) |
| 15 | Central information display (CID) |
| 16 | Car Information Computer (CIC) |
| 17 | Head-Up Display (HUD) |
| 18 | Crash safety module (ACSM) |
| 19 | Driver's seat belt buckle contact |
| 20 | Driver's door contact |
| 21 | Controller (CON) |
| 22 | Steering column switch cluster (SZL) |

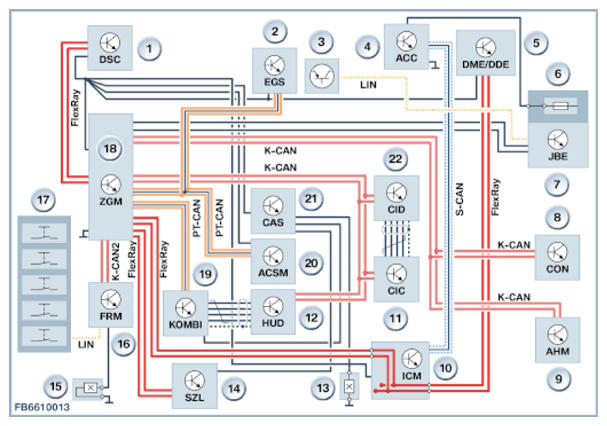

Displayed F0x, F1x
| Item | Description |
|---|---|
| 1 | Dynamic stability control (DSC) |
| 2 | Electronic transmission control (EGS) |
| 3 | Rain-light-solar-condensation sensor |
| 4 | Active cruise control (ACC) with ACC control unit and ACC sensor |
| 5 | Digital Motor Electronics or Digital Diesel Electronics (DME or DDE) |
| 6 | Front power distribution box |
| 7 | Junction box electronics (JBE) |
| 8 | Controller (CON) |
| 9 | Trailer Module (AHM) |
| 10 | Integrated Chassis Management (ICM) |
| 11 | Car Information Computer (CIC) |
| 12 | Head-Up Display (HUD) |
| 13 | Driver's seat belt buckle contact |
| 14 | Steering column switch cluster (SZL) |
| 15 | Driver's door contact |
| 16 | Footwell module (FRM) |
| 17 | Assist systems operating facility |
| 18 | Central gateway module (ZGM) |
| 19 | Instrument panel (KOMBI) |
| 20 | Crash safety module (ACSM) |
| 21 | Car Access System (CAS) |
For implementation of the Stop & Go function, a complex system network with distributed functions in other control units is necessary. The ICM control unit or LDM control unit is connected across data buses to these other control units.
The following control units are networked for the overall function:
| Control unit | Function |
|---|---|
| DME or DDE: Engine control | Implementation of the torque request "Engine on" signal |
| DSC: Dynamic stability control | Driving condition Implementation of brake intervention |
| SZL: Steering column switch cluster | ACC operation E70, E71: Drop arm F0x, F1x: Buttons on steering wheel Steering angle |
| CIC: Navigation system | Data from navigation system (influence on control variables) |
| INSTRUMENT PANEL: Instrument panel control unit | Diagram of the displays (ACC and Check Control messages) |
| HUD: Head-Up Display | Diagram of the displays (ACC and Check Control messages) |
| CAS: Car access system | Terminal status and wake-up line Door contact |
| EGS: Transmission control unit | Driving position |
| AHM: Trailer module | Identification of trailer towing |
| ACSM. Crash safety module | Driver's seat occupancy (driver intends to exit) Seat belt buckle contact (driver intends to exit) |
| RLS: Rain/rain/light sensor | Road condition (wet) |
| FRM: Footwell module | Activation, hazard warning flashers, door contact |
