System network

The Rear Electronic Module (REM) functions as transmitter and receiver for several linked control units. The signals are assigned internally to the corresponding receivers and output.

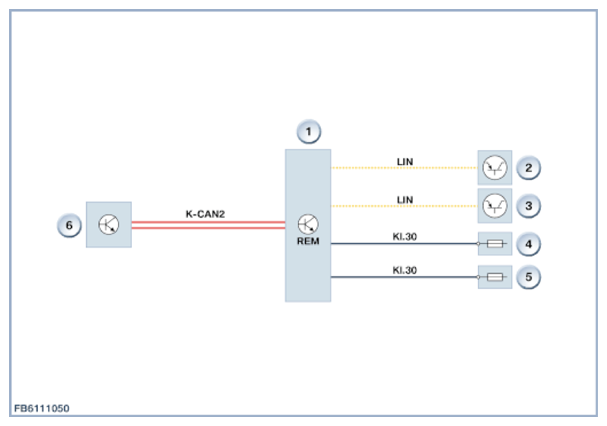

The following graphic shows the system network for the Rear Electronic Module (REM).

Fig 1: Rear Electronic Module - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Rear Electronic Module (REM)
2	LIN: Seat-heating electronics, driver's side
3	LIN: Seat-heating electronics, passenger's side
4	Terminal 30: Power distribution box, rear
5	Power distribution box, rear
6	K-CAN2: Front electronic module (FEM), automatic luggage compartment lid actuation (HKL), parking maneuvering assistant (PMA), convertible top module (CVM) and convertible-top module (CTM)
