41 00... Installing Cavity Sealing (Expanded)

NOTE: Carry over schematic diagram to the relevant vehicle type.

The following repair represents the procedure for an already expanded cavity acoustic baffle.

The cavity acoustic baffle remains on the body in this instance.

Before these work steps, prepare the new part so that it is ready to install (adapting, cutting to size, applying welding primer etc.).

Clean contact surface (1) with cleaning agent R2.

Apply a bead (2) approx. 15 mm high of sealant D2 to contact surface (1). See 41 00... OVERVIEW OF CONSUMABLES (4.0 Sealant).

If necessary apply sealant D2 somewhat thinner on each side, to prevent the sealant from running.

Fit, secure and weld up new part.

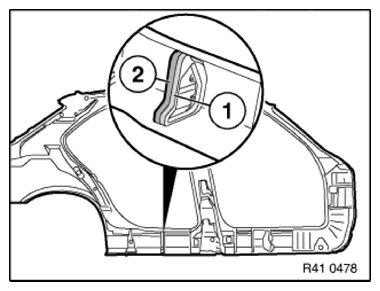

Fig 1: Identifying Contact Surface And Sealant Bead Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Ensure adequate ventilation over entire processing period.
