Removing and installing (replacing) Touchbox controller control unit (2016-2022)

Necessary preliminary tasks:

• Remove COMPLETE CENTER CONSOLE .

Removal:

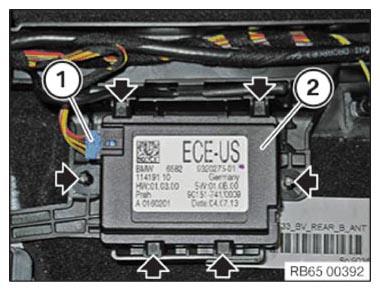

Unlock and disconnect the connector (1).

Release latch mechanisms at marked points.

Remove Touchbox (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position and engage Touchbox (2) correctly.

Connect the plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install CENTER CONSOLE, COMPLETE .

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .

Attention!

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

• Remove FOOTWELL SIDE TRIM PANEL, RIGHT .

Removal:

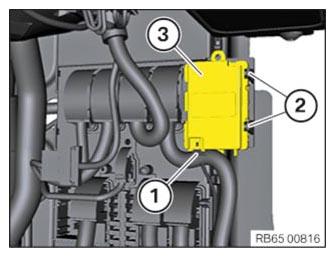

Unfasten plug connection (1) and disconnect.

Release Touchbox (3) from the latch mechanisms (2) and feed out from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in Touchbox (3) correctly on the holder and engage it to the latch mechanisms (2).

Connect and lock plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install FOOTWELL SIDE TRIM PANEL, RIGHT .

Replacement:

Carry out PROGRAMMING .
