Removing and installing/replacing USB interface connecting socket (2016-2022)

Necessary preliminary tasks:

• Remove GLOVE BOX WITH HOUSING .

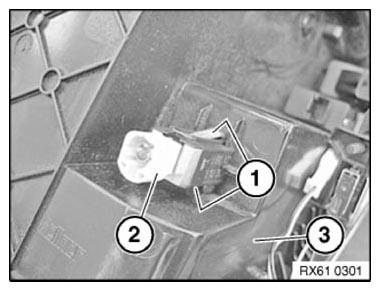

Release retaining clamps (1).

Push USB interface connecting socket (2) to the front from glove box (3).

Installation note:

Retaining clips (1) must not be damaged.

Make sure USB interface connecting socket (2) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
