Removing and installing/replacing steering wheel module control unit (2016-2022)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

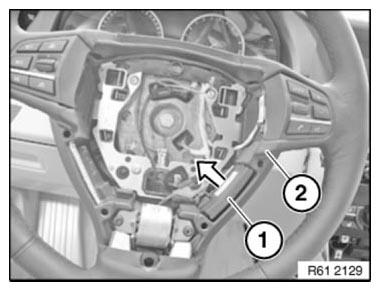

NOTE: Steering wheel cover is shown removed for purposes of clarity.

Remove control unit for steering wheel module (1) from steering wheel (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

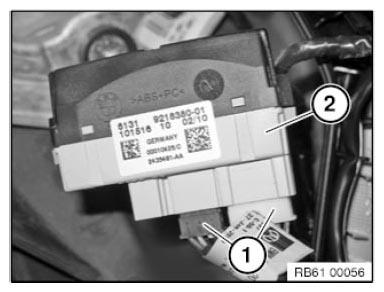

Disconnect plug connection (1).

Remove steering wheel electronics control unit (2).

Installation note:

Make sure electronic steering wheel module (2) is fitted correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
