Functional networking

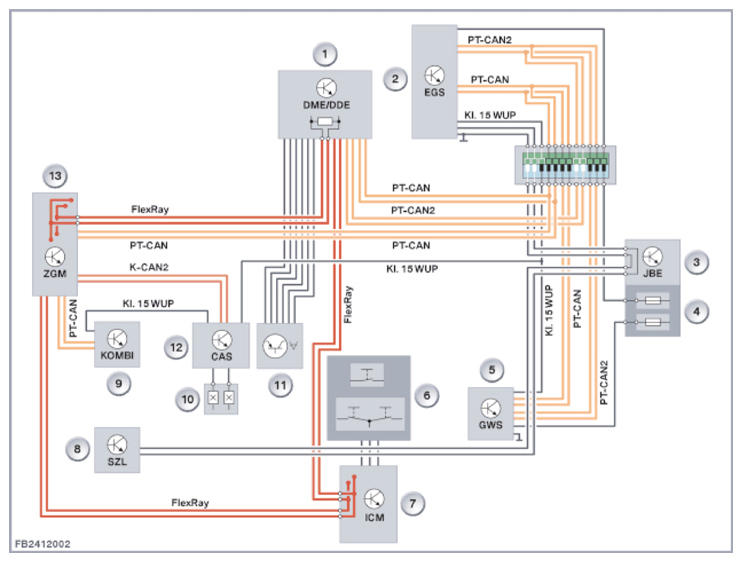

The following system overview shows the functional networking using the example of F01.
not illustrated: Functional networking with front electronic module (FEM), e.g. F30.
| Item | Explanation |
|---|---|
| 1 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 2 | Electronic transmission control (EGS) |
| 3 | Junction Box Electronics (JBE) |
| 4 | Front fuse and relay module |
| 5 | Gear selector switch (GWS) |
| 6 | Center console operating facility |
| 7 | Integrated chassis management (ICM) |
| 8 | Steering column switch center (SZL) |
| 9 | Instrument panel (KOMBI) |
| 10 | Brake light switch |
| 11 | Accelerator pedal module |
| 12 | Car access system (CAS) |
| 13 | Central gateway module (ZGM) |
