Removing and installing (replacing) receiver for radio remote control (Except M4 Convertible)
CAUTION:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary work:

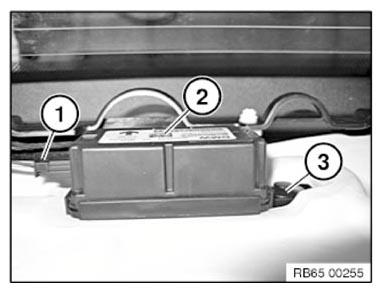

Unlock plug connection (1) and disconnect.
Lift out expanding rivet (3).
Remove the receiver (2).
Installation note:
Position the receiver (2) so that the positioning pin on the rear side engages in the associated bore hole.
