Removing and installing (replacing) steering column switch cluster

CAUTION: Move wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.
Make sure the anti-twist lock locks during removal, the dock spring must not twist until installation.

Necessary preliminary work:

Remove STEERING WHEEL .

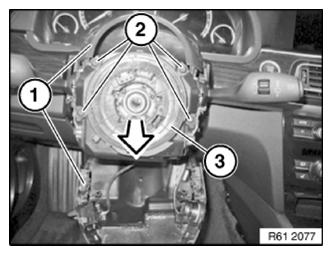

Unclip steering column shroud upper section and lower section (1).

Unfasten screws (2).

Tightening torque 61 31 3AZ .

Remove steering column switch cluster (3) in direction of arrow.

Installation note:

Make sure during installation that the anti-twist lock is positioned correctly on the coil spring cassette.

Courtesy of BMW OF NORTH AMERICA, INC.

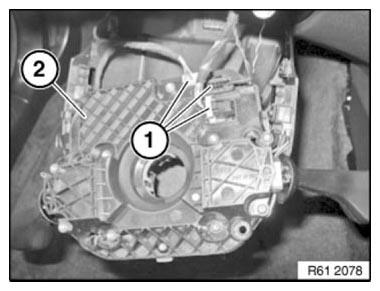

Disconnect plug connection (1).

Remove steering column switch cluster (2).

Courtesy of BMW OF NORTH AMERICA, INC.
