Removing and installing roof switch cluster (front) (M4 Convertible)

Special tools required:

00 9 325

IMPORTANT: Follow instructions for handling light bulbs (INTERIOR LIGHTING) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

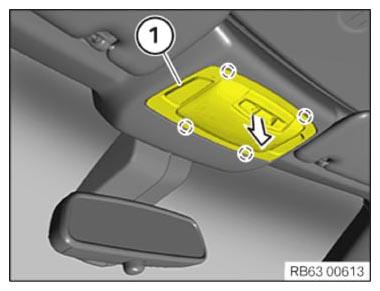

Carefully release trim (1) from clamps with special tool 00 9 325 and remove.

Unlock plug connections underneath and disconnect.

Installation note:

Make sure cover (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

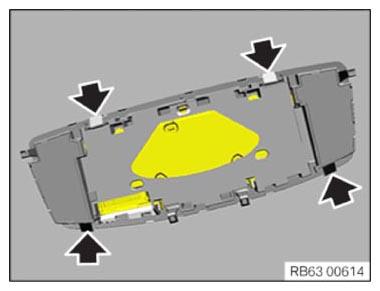

Installation note:

Clamps must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the SOS emergency call button results in fault entries in the telephone control unit (restriction in the emergency call system).

After installation, read out fault memory and if necessary delete fault code entry.

Replacement:

Re-mount INTERIOR ROOF LIGHT .
