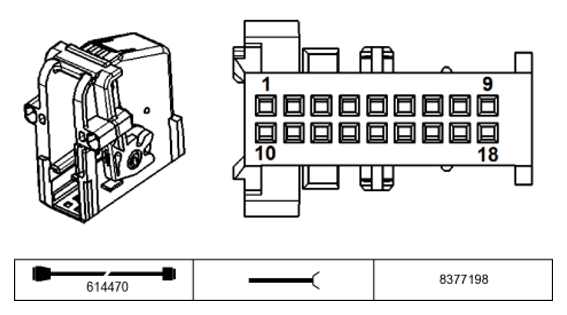

Convertible-Top Module A120*4B Connector End View
Pin Assignments At Plug Connector A120*4B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Activation Relay 2 for hardtop drive | Relay 2 for hardtop drive |
| 2 | A | Activation Relay 1 for hardtop drive | Relay 1 for hardtop drive |
| 3 | A | Activation Negative connection | Valve 2 |
| 4 | A | Activation Negative connection | Valve 1 |
| 5 | A | Activation Negative connection | Valve 5 |
| 6 | A | Activation Negative connection | Valve 4 |
| 7 | A | Activation Negative connection | Valve 3 |
| 8 | -- | Not used | |
| 9 | E | Oil temperture signal | Hydraulic oil temperature sensor |
| 10 | A | Activation Relay 2 for hardtop drive | Relay 2 for hardtop drive |
| 11 | A | Activation Relay 1 for hardtop drive | Relay 1 for hardtop drive |
| 12 | A | Activation Positive | Valve 2 |
| 13 | A | Activation Positive | Valve 1 |
| 14 | A | Activation Positive | Valve 5 |
| 15 | A | Activation Positive | Valve 4 |
| 16 | A | Activation Positive | Valve 3 |
| 17 | -- | Not used | |
| 18 | E | Oil temperture signal | Hydraulic oil temperature sensor |
