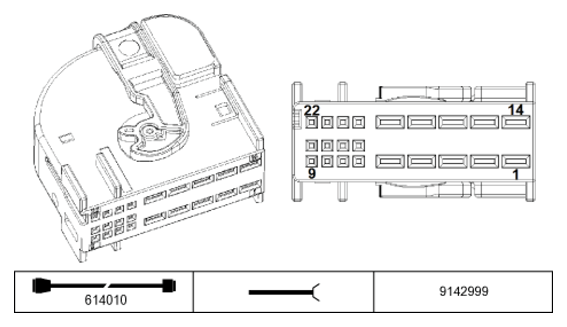

Seat Module, Driver A245*2B Connector End View
Pin Assignments At Plug Connector A245*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | A | Activation Drive unit, driver's seat angle adjustment | Drive unit, driver's seat angle adjustment |
| 3 | A | Activation Drive unit, driver's seat height adjustment | Drive unit, driver's seat height adjustment |
| 4 | -- | Not used | |
| 5 | A | Activation Drive unit, driver's seat forward/backward adjustment | Drive unit, driver's seat forward/backward adjustment |
| 6 | -- | Not used | |
| 7 | E | Hall sensor signal | Drive unit, driver's seat angle adjustment |
| 8 | E | Hall sensor signal | Drive unit, driver's seat height adjustment |
| 9 | E | Hall sensor signal | Drive unit, driver's seat forward/backward adjustment |
| 10 | -- | Not used | |
| 11 | E | Ground, Hall sensor | Drive unit, driver's seat angle adjustment |
| 12 | E | Ground, Hall sensor | Drive unit, driver's seat height adjustment |
| 13 | E | Ground, Hall sensor | Drive unit, driver's seat forward/backward adjustment |
| 14 | -- | Not used | |
| 15 | A | Activation Drive unit, driver's seat angle adjustment | Drive unit, driver's seat angle adjustment |
| 16 | A | Activation Drive unit, driver's seat height adjustment | Drive unit, driver's seat height adjustment |
| 17 | -- | Not used | |
| 18 | A | Activation Drive unit, driver's seat forward/backward adjustment | Drive unit, driver's seat forward/backward adjustment |
| 19 | -- | Not used | |
| 20 | -- | Not used | |
| 21 | -- | Not used | |
| 22 | -- | Not used |
