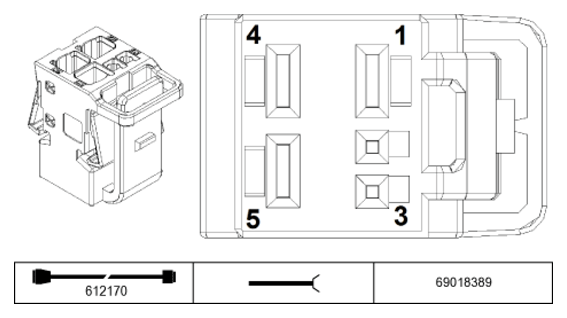

Seat Module, Driver A245*4B Connector End View
Pin Assignments At Plug Connector A245*4B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Activation Driver's seat cushion heating | Driver's seat cushion heating |
| 2 | -- | Not used | |
| 3 | E | Signal, temperature sensor | Driver's seat cushion heating |
| 4 | M | Ground Driver's seat cushion heating | Driver's seat cushion heating |
| 5 | -- | Not used |
