REP-TAT-P-3231-02 Install steering column shroud lower section

Prerequisite:

Steering column in top and raised position.

• Connect the connector (2) of the ring aerial and if applicable the connector (1) of the steering column adjustment.
• Tilt the steering column shroud lower section upwards towards the steering column.

  Courtesy of BMW OF NORTH AMERICA, INC.

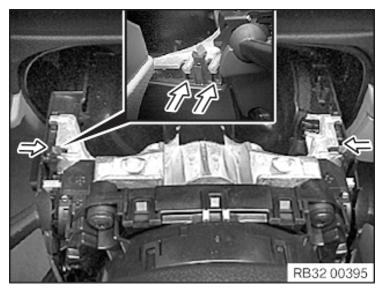

• Align the steering column shroud lower section with the steering column using the retaining lugs and press upwards up to the limit position.
• Slightly press the steering column shroud lower section together on both sides and then completely press it upwards until the retaining lugs engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work:

Install STEERING COLUMN SHROUD UPPER SECTION .
