Install the electrical machine electronics (EME)

Check

• Place the electrical machine electronics (EME) reversed into the special tool 2 356 938 .
• Check the seals (1) and (2) and the diaphragms (3) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The gaskets or diaphragms are damaged.

  Measure

• Replace the electrical machine electronics (EME).
  • Cleaning the copper connections of the electrical machine electronics (EME) and the connection housing

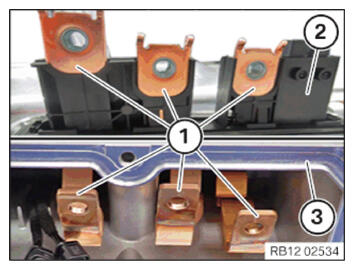

• Cleaning copper connections (1) of EME (2) and connection housing (3):
• Do not touch the copper connections (1).
• Clean the copper connections (1) using a non-woven abrasive until the condition as displayed in the illustration is achieved.
• Thoroughly draw off the particles that are produced during the grinding process.

  Do not use compressed air.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Non-woven abrasives  3M-07904

  45176141 (BASF)

  • Replacing the decoupling elements
  • When replacing the electrical machine electronics (EME):

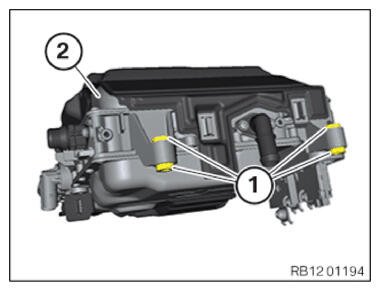

  Replace the decoupling elements (1) of the electrical machine electronics (EME) (2).

  Parts:  Isolators

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the electrical machine electronics (EME) (2).
  WARNING: Potential equalization in high-voltage system  .
  Mortal hazard if the potential equalization screw connection is not correct!

  • Observe the safety requirements for potential equalization screw connection.
  • Clean contact faces and have then checked by a second person.
  • Tighten the screws/nuts for equipotential bonding with torque; have a second person check the torque.
  • Correct execution of this work must be documented by both persons in the vehicle records.

  Courtesy of BMW OF NORTH AMERICA, INC.

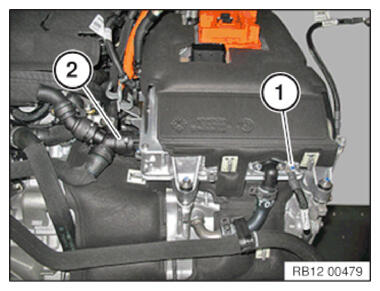

• Tighten the bolts (1) on the electrical machine electronics (EME) (2).
  TIGHTENING TORQUES SPECIFICATION



  Electrical machine electronics (EME) to electrical machine
  M8	Tightening torque	19 Nm

  WARNING: Potential equalization in high-voltage system  .
  Mortal hazard if the potential equalization screw connection is not correct!

  • Observe the safety requirements for potential equalization screw connection.
  • Clean contact faces and have then checked by a second person.
  • Tighten the screws/nuts for equipotential bonding with torque; have a second person check the torque.
  • Correct execution of this work must be documented by both persons in the vehicle records.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the bolts (1) on the electrical machine electronics (EME) (2).
  TIGHTENING TORQUES SPECIFICATION



  Electrical machine electronics (EME) to electrical machine
  M8	Tightening torque	19 Nm

  NOTE: RISK OF DAMAGE
  Contaminant or foreign body  .
  Contamination can result in malfunctions, loss of function or leaks  .

  • Adhere to the utmost cleanliness.
  • Protect components from contamination e.g. by covering.
  • Close off line connections with seal plugs.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (1).

  Parts:  Screws

• Tighten the bolts (1) of the high-voltage cables.
  TIGHTENING TORQUES SPECIFICATION



  High-voltage cable to electrical machine electronics (EME)
  M8 Replace screws.	Tightening torque	14 Nm

• Connect the connector (2) of the temperature sensor and the rotor position sensor and lock.
• Replace the service cap (2).

  Parts:  service cap

• Check the seal of the service cap (2) for damage, replace the seal if necessary.
• If necessary, attach a new warning sign on the service cap (2).
• Position the service cap (2) and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Service cap to electrical machine
  M6	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and position the sound insulation (3).
• Replace the clamps (2).

  Parts:  Clamps

• Secure the clamps (2) on the sound insulation (3).
• Attach the high-voltage cable of the electric A/C compressor (EKK) at the attachment point (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (3).

  Parts:  Clamps

• Secure the clamps (3) on the sound insulation.
• Position the line clip and tighten the screw (4).
  TIGHTENING TORQUES SPECIFICATION



  Line clip to electrical machine electronics (EME)
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  WARNING: Potential equalization in high-voltage system  .
  Mortal hazard if the potential equalization screw connection is not correct!

  • Observe the safety requirements for potential equalization screw connection.
  • Clean contact faces and have then checked by a second person.
  • Tighten the screws/nuts for equipotential bonding with torque; have a second person check the torque.
  • Correct execution of this work must be documented by both persons in the vehicle records.
• Position the potential equalization line and tighten the screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Potential equalization line to electrical machine electronics (EME)
  M6	Tightening torque	8 Nm

• Connect the coolant hose and close the gripper clamp (1).
  • On vehicles with range extender
• Connect and lock the coolant line (2).
  WARNING: Potential equalization in high-voltage system  .
  Mortal hazard if the potential equalization screw connection is not correct!

  • Observe the safety requirements for potential equalization screw connection.
  • Clean contact faces and have then checked by a second person.
  • Tighten the screws/nuts for equipotential bonding with torque; have a second person check the torque.
  • Correct execution of this work must be documented by both persons in the vehicle records.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (1) of the potential equalization line.
  TIGHTENING TORQUES SPECIFICATION



  Potential equalization line to electrical machine electronics (EME)
  M6	Tightening torque	8 Nm

• For SA4U8 alternating current quick charging:

  Connect and lock the high-voltage cable (6) of the convenience charging electronics (KLE).

• Connect and lock the high-voltage cable (5) of the electric A/C compressor (EKK).
• Attach the wiring harness (4) at the attachment points (arrows).
• Tighten the screw (1) of the ground connection of the wiring harness.
  TIGHTENING TORQUES SPECIFICATION



  Wiring harness ground connection to electrical machine electronics (EME)
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the signal line (3).
• With SA4U7 direct current quick charging or SA4U8 alternating current quick charging:

  Insert the high-voltage cable (2) of the convenience charging electronics (KLE) and clip it in at the holders (arrows).

• Connect and lock the connector of the high-voltage cable (2).
• Replace the clamps (1).

  Parts:  Clamps

• Position the sound insulation (2) and secure the clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the sheet metal bracket of the electrical machine electronics (EME) (2) and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Sheet metal bracket on electrical machine electronics
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the mounting bracket (3) and tighten the screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Transmission mounting bracket, left to electrical machine
  M10	Tightening torque	56 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the high-voltage cable at the attachment points (1).

Follow-up work

• Refer to INSTALLING THE DRIVE UNIT COMPLETE WITH THE RANGE EXTENDER .
• Refer to CHECK/TOPPING UP TRANSMISSION OIL IN THE ELECTRIC MACHINE TRANSMISSION .
• Refer to REPLACING THE RADIAL SHAFT SEAL ON THE ELECTRIC MACHINE TRANSMISSION .
• Refer to CHECKING THE GEARING OF THE OUTPUT SHAFT .
• Refer to INSTALLING RIGHT OUTPUT SHAFT .
• Refer to INSTALLING LEFT OUTPUT SHAFT .
• Refer to MOUNTING CONTROL LINK AND CAMBER CONTROL ARM ON THE WHEEL CARRIER .
• Refer to MOUNTING THE TRAILING ARM ON THE WHEEL CARRIER .
• Refer to RELEASING SPRING STRUT SHOCK ABSORBER FROM WHEEL CARRIER .
• Refer to TIGHTENING THE THREADED CONNECTION OF THE TOE LINK, CAMBER LINK, AND TRAILING LINK TO THE NORMAL POSITION .
• Refer to SECURING SPRING STRUT SHOCK ABSORBER ON THE WHEEL CARRIER .
• Refer to INSTALLING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to GREASE THE WHEEL HUB .
• Refer to INSTALLING RANGE EXTENDER ELECTRICAL MACHINE ELECTRONICS (REME) .
• Refer to INSTALLING THE CONVENIENCE CHARGING ELECTRONICS (KLE) .
• Refer to INSTALLING ENGINE COMPARTMENT FAN .
• Refer to INSTALLING VERTICAL STRUT .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING WHEEL ARCH COVER .
• Refer to INSTALLING REAR CROSS-MEMBER .
• Refer to INSTALLING THE HORIZONTAL STRUT ON THE LEFT AND RIGHT .
• Refer to INSTALLING UNDERBODY PROTECTION .
• Refer to INSTALLING SUPPORT FOR THE REAR BUMPER PANEL .
• Refer to INSTALLING REAR BUMPER PANEL .
• Refer to INSTALLING NUMBER PLATE LIGHT .
• Refer to MOUNTING LICENSE PLATE .
• Refer to ON VEHICLES WITH RANGE EXTENDER: INSTALLING THE COVER OF THE ENGINE COMPARTMENT .
• Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT OF THE DRIVE .
• Refer to INSTALLING THE REAR LEFT AND RIGHT WHEELS .
• Refer to INSTALLING SERVICE CAP IN TRUNK .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to CONNECTING FRONT RIGHT BATTERY GROUND LEAD IN TRUNK .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FRONT RIGHT COVER IN TRUNK .
• Refer to CHECKING THE RANGE EXTENDER FOR LEAKS .
