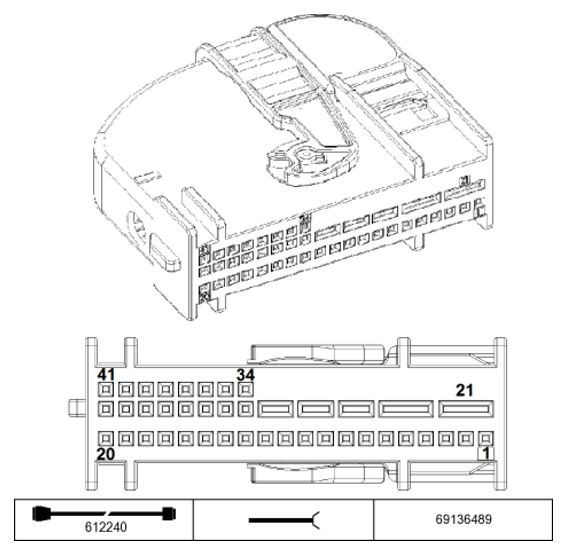

Convertible-Top Module A120*3B Connector End View
Pin Assignments At Plug Connector A120*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Supply, terminal 15 | Fuse F143 |
| 2 | M | Ground | Ground point |
| 3 | E | Switch signal, interior lighting | Roof function centre |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | A | Aerial diversity changeover | Left aerial amplifier AM/FM Right aerial amplifier FM |
| 13 | E | Switch signal | Hardtop operating unit |
| 14 | E | Switch signal | Hardtop operating unit |
| 15 | A | Locator lighting | Switch, loading aid |
| 16 | A | LED activation | Switch, loading aid |
| 17 | E | Switch signal | Automatic soft-close drive, left |
| 18 | E | Switch signal | Automatic soft close drive, right |
| 19 | E | Switch signal | Automatic soft-close drive, left |
| 20 | E | Switch signal | Automatic soft close drive, right |
| 21 | M | Ground | Ground point |
| 22 | E | Power supply, terminal 30B | Fuse F141 |
| 23 | A | Activation Automatic soft-close drive, left | Automatic soft-close drive, left |
| 24 | M | Ground | Automatic soft-close drive, left Automatic soft close drive, right |
| 25 | A | Activation Automatic soft close drive, right | Automatic soft close drive, right |
| 26 | A | Supply | Micro-switch, left-hand interlocking ring buckle closed |
| 27 | A | Supply | Micro switch, cowl panel reached |
| 28 | A | Supply, Hall sensor | Hall effect sensor, bottom luggage compartment partition |
| 29 | A | Supply | Microswitch, hardtop loading position |
| 30 | A | Supply, Hall sensor | Left Roof package stored hall effect sensor |
| 31 | -- | Not used | |
| 32 | -- | Not used | |
| 33 | -- | Not used | |
| 34 | E | Switch signal | Micro-switch, left-hand interlocking ring buckle closed |
| 35 | E | Switch signal | Micro switch, cowl panel reached |
| 36 | E | Hall sensor signal | Hall effect sensor, bottom luggage compartment partition |
| 37 | E | Switch signal | Microswitch, hardtop loading position |
| 38 | E | Hall sensor signal | Left Roof package stored hall effect sensor |
| 39 | E | Switch signal | Switch, loading aid |
| 40 | E/A | Bus signal | K-CAN2 bus |
| 41 | E/A | Bus signal | K-CAN2 bus |
