Installing the control unit for the front left armrest heating

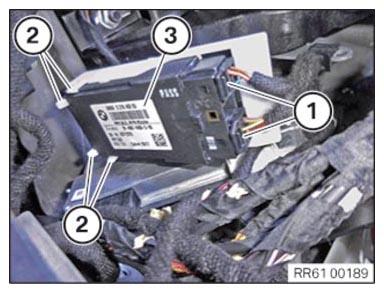

Correctly position the control unit
(3)
and engage it in the detents
(2)
.
Connect connectors
(1)
and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY
.
