Installing the control unit for the contact detection

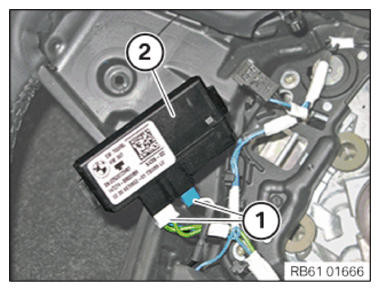

• Connect both connectors (1)  to the control unit (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

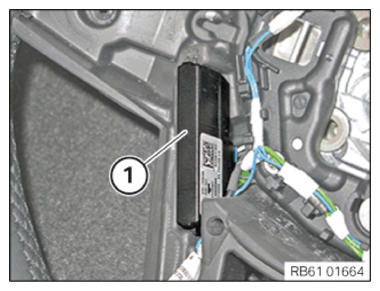

• Install control unit (1)  in the steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
