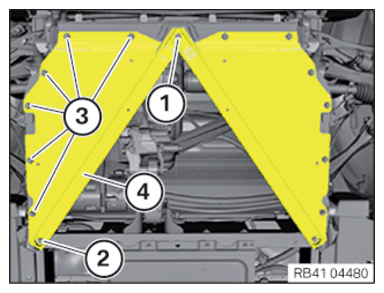

Remove the horizontal strut on the left
Loosen screw (1).
Loosen screws (2) and (3).
Remove the left horizontal strut (4).
Courtesy of BMW OF NORTH AMERICA, INC.
