Removing engine

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.
Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

WARNING: Working on fuel system.
Risk of fire! Danger of explosion!

When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
No fire, sparks, open flames or smoking.

CAUTION: On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!

Wear suitable personal protective equipment.
Before performing any installation work, allow cooling system to cool down to less than 40°C.
Note warnings on cylinder head cover.

NOTE: RISK OF DAMAGE
Engine damage due to missing motor oil.
Missing motor oil following replacement of the cylinder head or the engine can lead to damage on the valve train.

After replacing the cylinder head or the engine, do not start the engine without observing the repair notes.
It is imperative you observe the repair notes for cylinder head or engine replacement.
For additional information, see: REPAIR NOTES FOR CYLINDER HEAD OR ENGINE REPLACEMENT .

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING WINDSHIELD PANEL COVER .
Refer to REMOVING THE CENTER COWL UPPER PART .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING ACOUSTIC COVER AT REAR .
Refer to REMOVING THE CENTER BULKHEAD LOWER PART .
Refer to REMOVING ALL IGNITION COILS .
Refer to REMOVING FUEL DELIVERY LINE .
Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to REMOVING CHARGE AIR LINE .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
Refer to REMOVING THE FRONT ACOUSTIC COVER FOR THE ENGINE .
Refer to RELEASING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
Refer to REMOVING THE DME CONTROL UNIT .
Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to REMOVING CONTROL UNIT BRACKET .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to IF INSTALLED: REMOVE THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
Refer to REMOVING COMPLETE EXHAUST SYSTEM .
Refer to REMOVING CATALYTIC CONVERTER .
Refer to REMOVING STARTER MOTOR .
Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to REMOVING THE HEAT SHIELDS .
Refer to REMOVING THE RETAINING PLATES .
Refer to PARTIALLY LOOSENING THE PROP SHAFT .
Refer to DISCONNECTING HYDRAULIC LINES ON THE TRANSMISSION .
Refer to DETACHING TRANSMISSION CROSS MEMBER .
Refer to REMOVING EXHAUST SYSTEM HOLDER .
Refer to REMOVING AUTOMATIC TRANSMISSION (GA8HP51Z) .
Refer to INSTALLING THE SPECIAL TOOL ON THE CYLINDER HEAD .

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

WARNING: Working on fuel system.
Risk of fire! Danger of explosion!

When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
No fire, sparks, open flames or smoking.

WARNING: Contact with hazardous fluids.
Hazardous to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

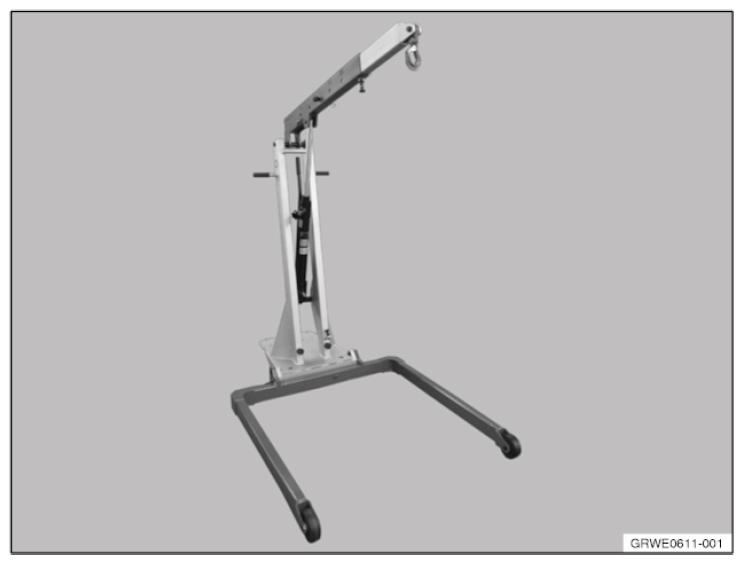

Prepare the special tool 2 220 718 .

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare special tool 0 490 567 (11 0 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

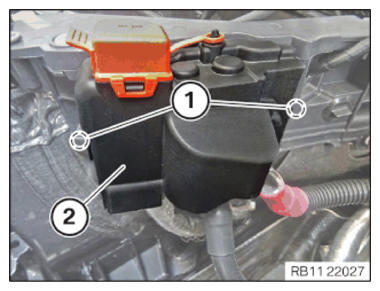

Remove the cover (2) from the latch mechanisms (1) .
Remove the cover (2) in an upwards direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nuts (1) .
Remove the positive battery cable (2) and set it aside.
Remove the positive battery cable (3) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen clamp (1) .
Unlock and release lock (2) .
Guide the fuel feed line (3) out and set it aside.
Catch and dispose of leakage fuel.
Unlock and disconnect the tank ventilation line (4) .

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the vacuum line (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and release the coolant lines (1) and (2) .
Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen coolant line (1) .
Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen coolant line (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen coolant line (1) .
Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and release coolant line (1) at the electric coolant pump (2) .
Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.

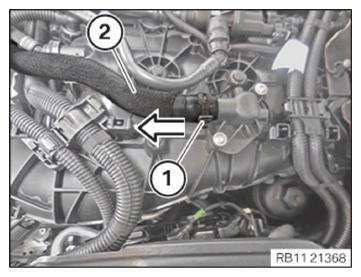

Release the clamping collar (1) with the special tool 0 495 794 (17 2 050) .
Feed out the coolant hose (2) in direction of arrow and set it aside.
Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen clamp (1) .
Feed out the coolant hose (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and release the coolant lines (1) up to (3) .
Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock lock (1) .
Thread out holder (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Thread out holder (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Only loosen the air conditioning compressor, do not remove it.
Do not draw off the refrigerant.
Do not loosen the refrigerant lines.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Loosen screws (2) .
Slide the air conditioning compressor (3) out and set it aside.
Secure air conditioning compressor (3) against falling down with special tool 2 413 317 .
Loosen screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Guide out and remove manifold support (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) .
Feed out the transmission oil lines (2) and remove.
Catch and dispose of escaping transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) of the left engine mount from the bottom with a standard tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Release screw (1) on the right engine mount from the top with a commercially available tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Hook the special tool 0 490 567 (11 0 020) to the special tool 2 220 718 (2) .
Hook the special tool 0 490 567 (11 0 020) to engine mounting bracket (1) .
Hook the special tool 0 490 567 (11 0 020) to special tool 2 459 012 .
Feed out the combustion engine with the special tool 2 220 718 (2) and lift it out.

Courtesy of BMW OF NORTH AMERICA, INC.
