61 13... Base of tab connector housings

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

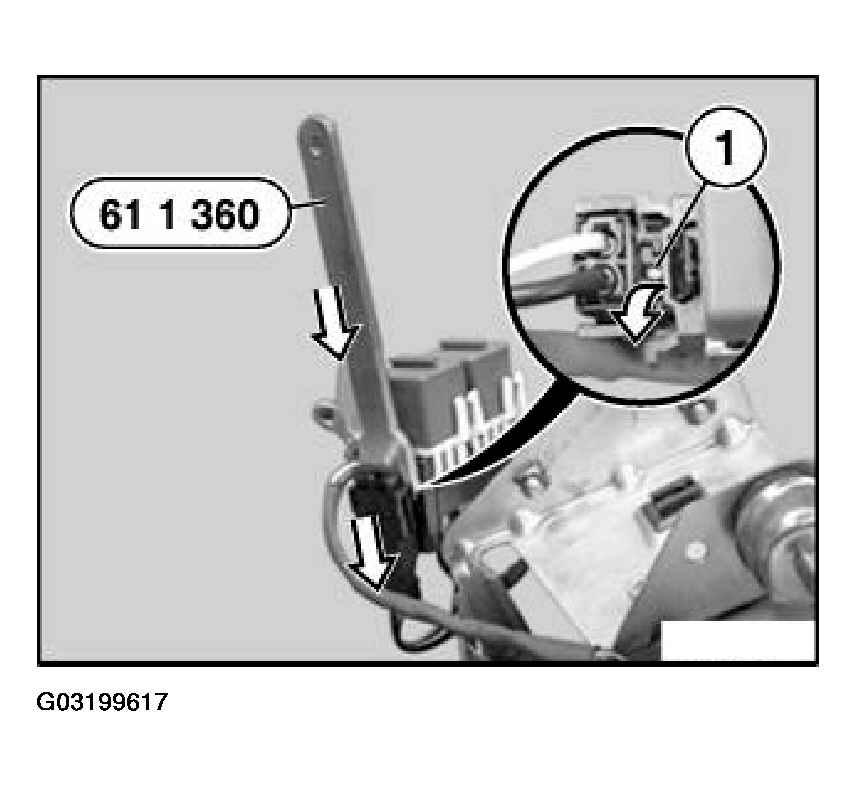

Fig 1: Unlocking Hook
G03199617Courtesy of BMW OF NORTH AMERICA, INC.
