61 13... Crimping annular contacts

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Crimpacll crimping pliers from repair kit 1 are used to crimp annular contacts.

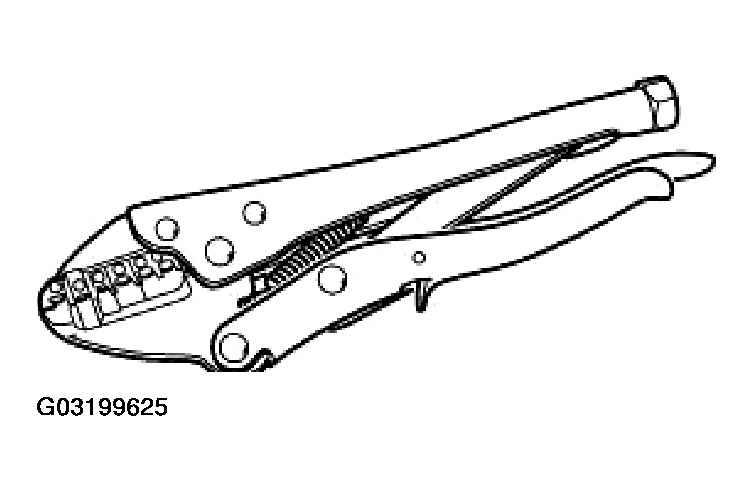

Fig 1: Identifying Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

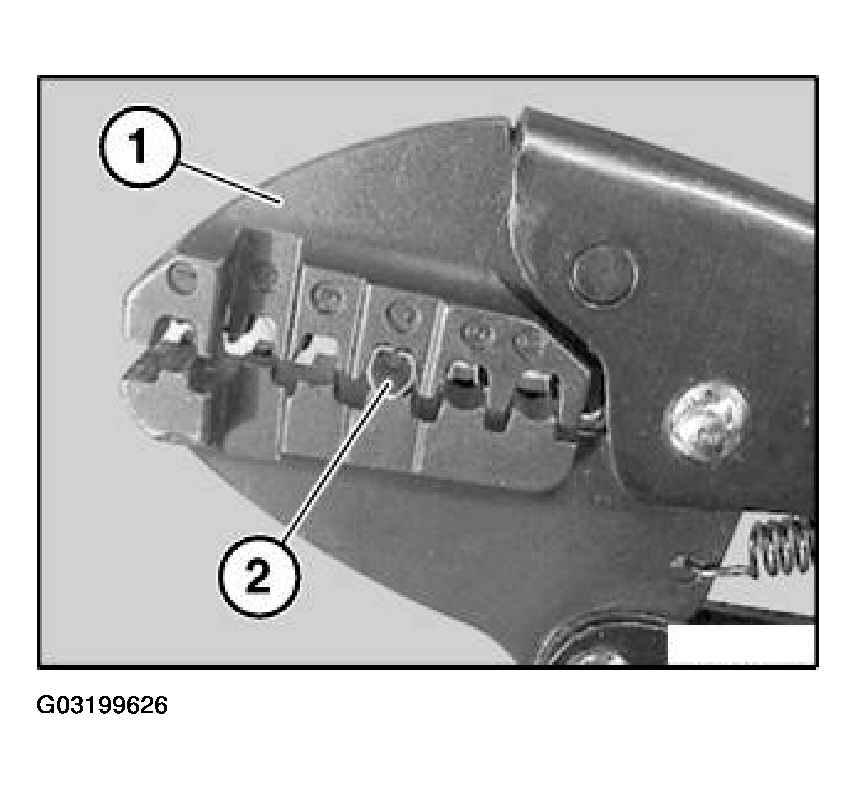

Fig 2: Inserting Contact In Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Close crimping pliers (1) gently and keep closed.

NOTE: Follow procedure for cutting and stripping insulation from cables.
Feed stripped cable (1) into annular contact (2) completely.
Close crimping pliers (3) fully.
Open crimping pliers (3) and remove cable (2).

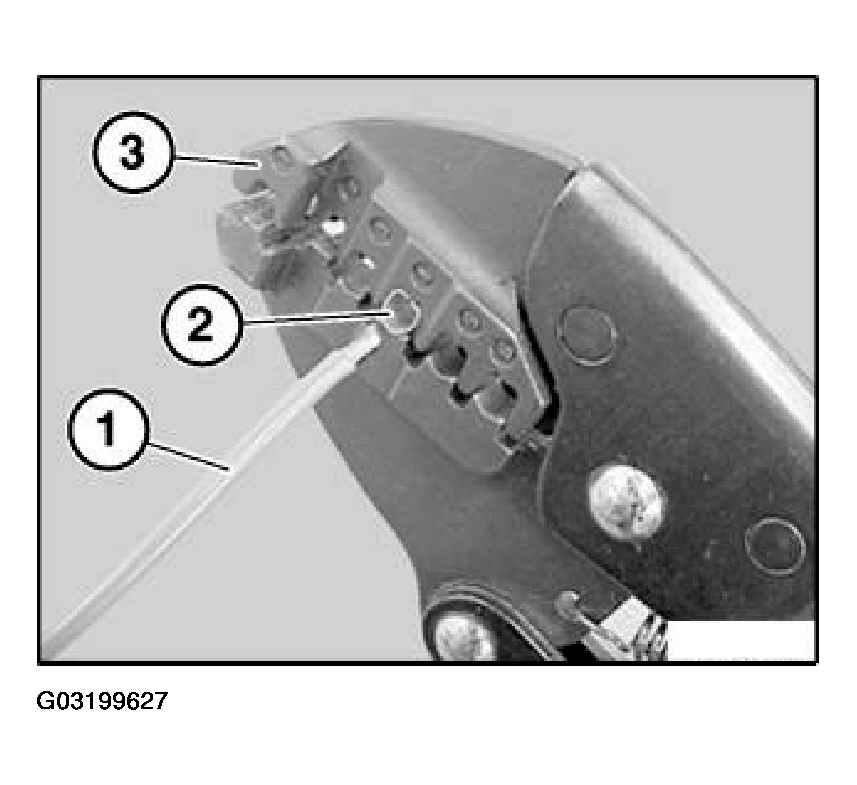

Fig 3: Crimping Cable

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check contact for correct crimping.
