Removing MQS contacts from contact carrier:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

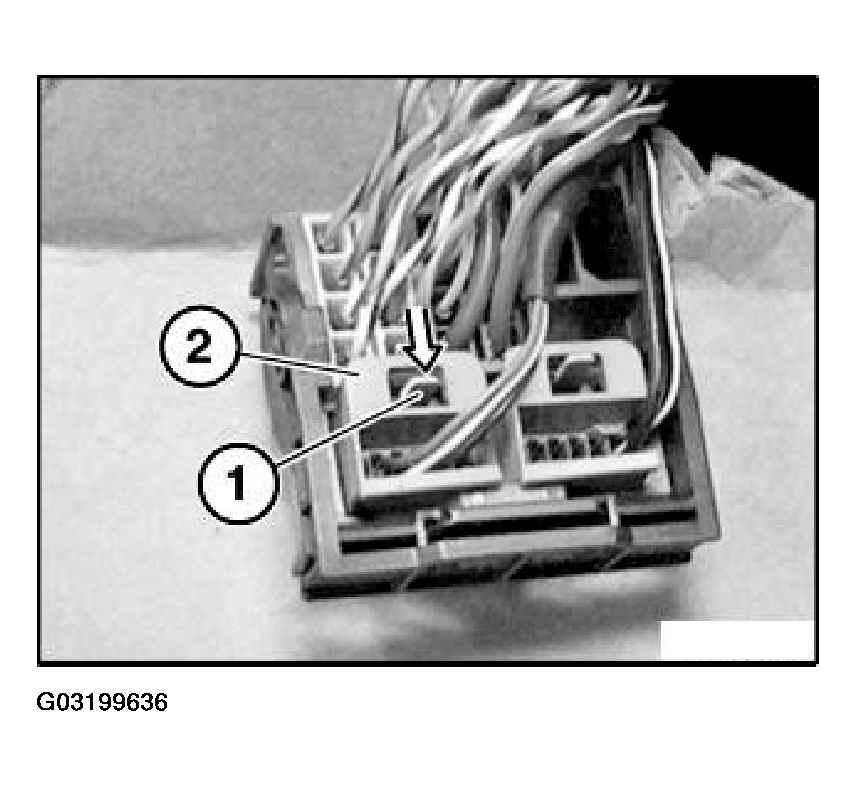

Press lock (1) in direction of arrow and pull housing (2) out of radio plug.

Fig 1: Pulling Housing Out Of Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

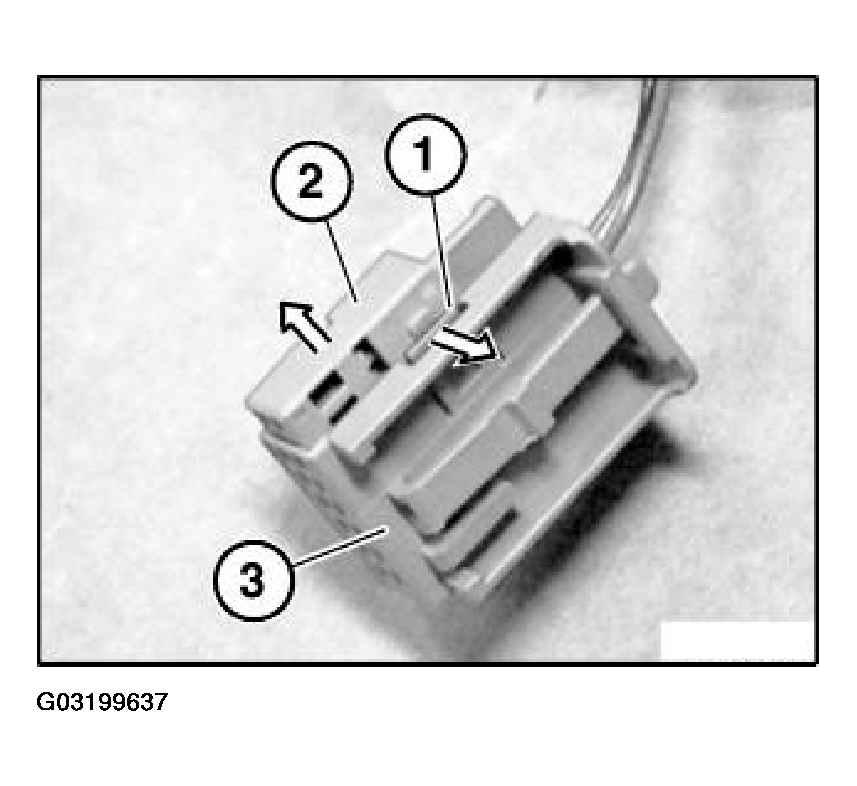

Press lock (1) in direction of arrow. Pull contact carrier (2) out of housing (3).

Fig 2: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When the contact carrier is pulled out, the secondary locks of the socket contacts are raised.

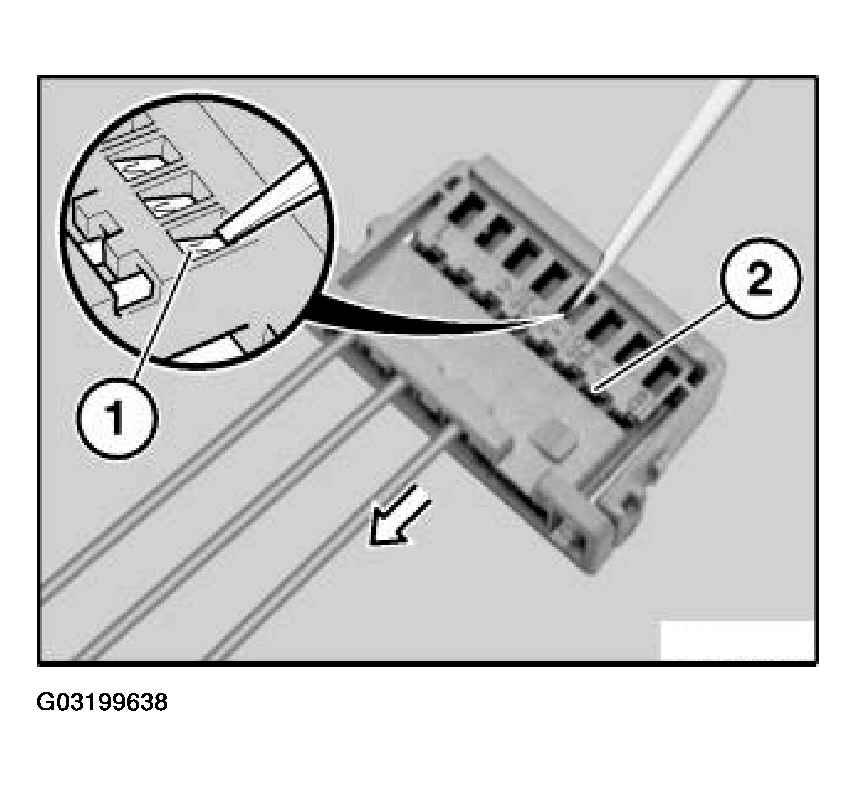

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

Fig 3: Pulling Wire With Socket Contact

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The illustration shows an 8 -pin socket housing where removal of the contacts is identical.

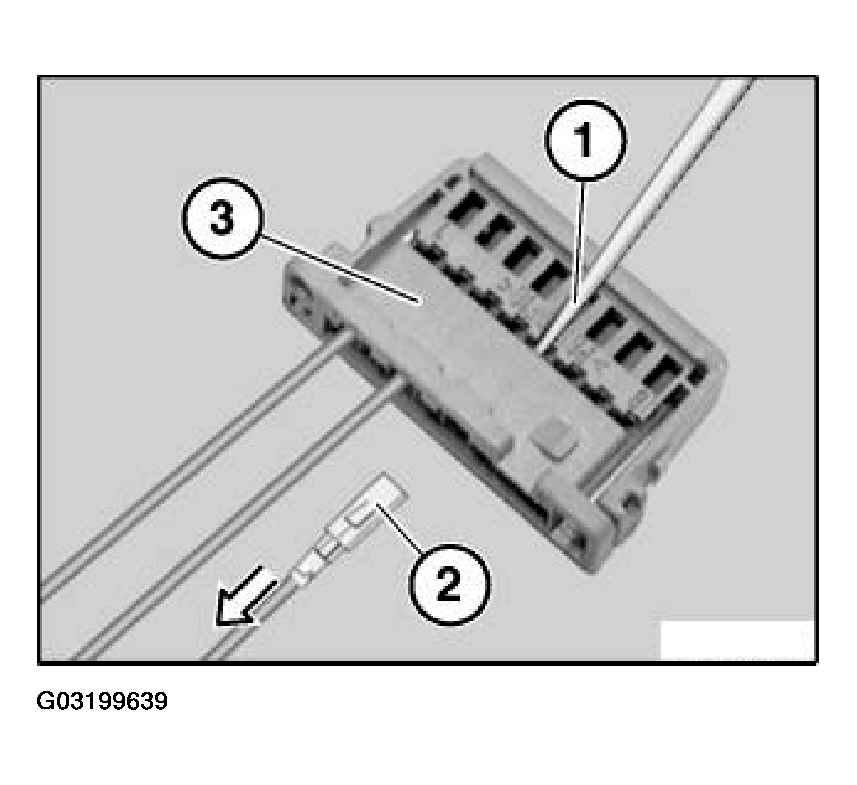

Hold down arrester hook in secondary lock (1) again. Pull wire with socket contact (2) out of contact carrier (3).

Fig 4: Removing Wire From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
