61 31 020 Removing and installing/replacing ignition starter switch: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

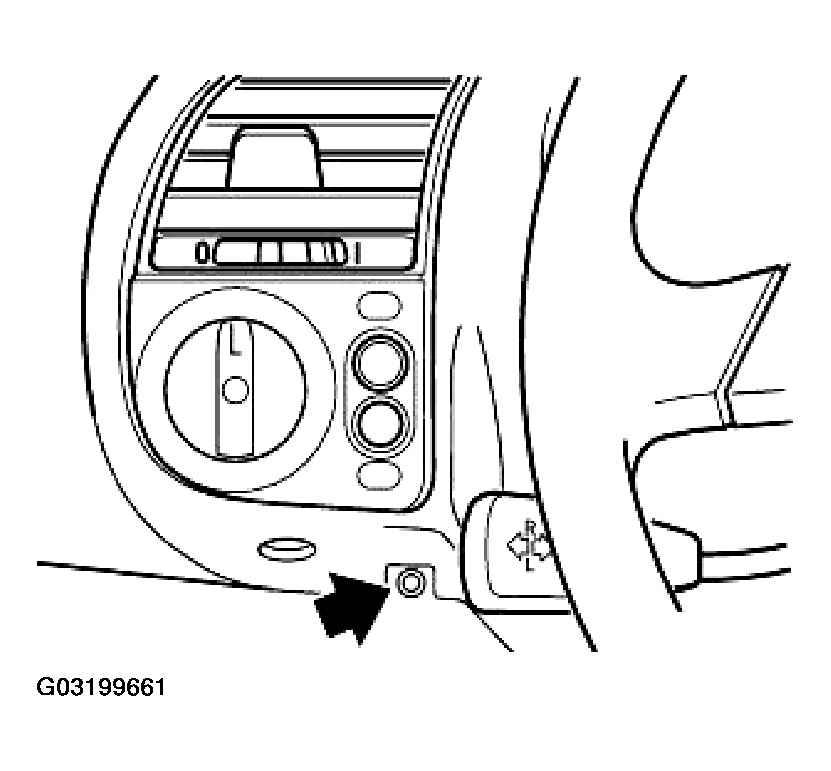

Unscrew screw.

Fig 1: Removing Screw

G03199661

Courtesy of BMW OF NORTH AMERICA, INC.

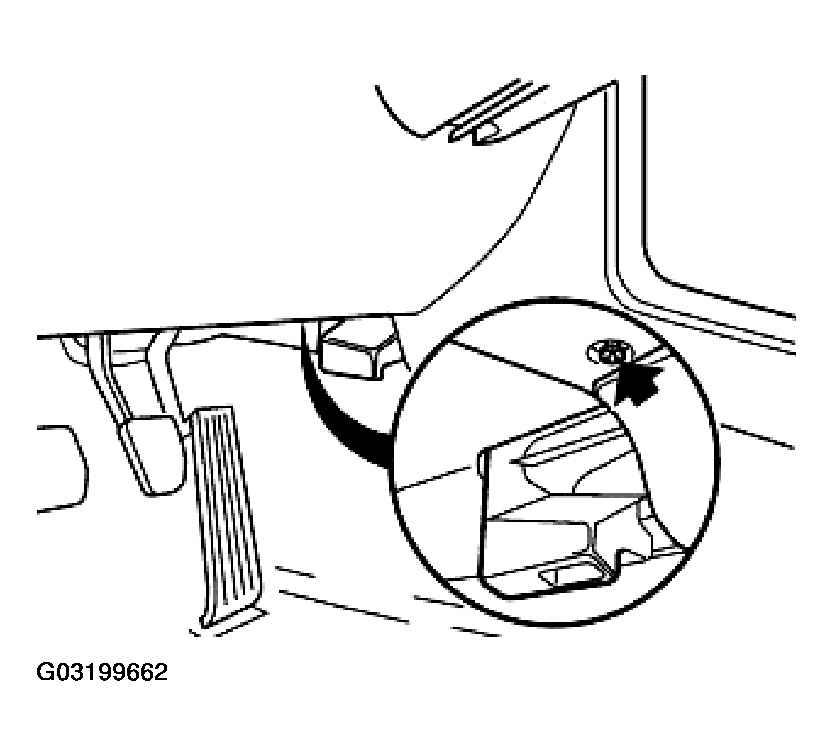

Unscrew screw.

Fig 2: Removing Screw

G03199662

Courtesy of BMW OF NORTH AMERICA, INC.

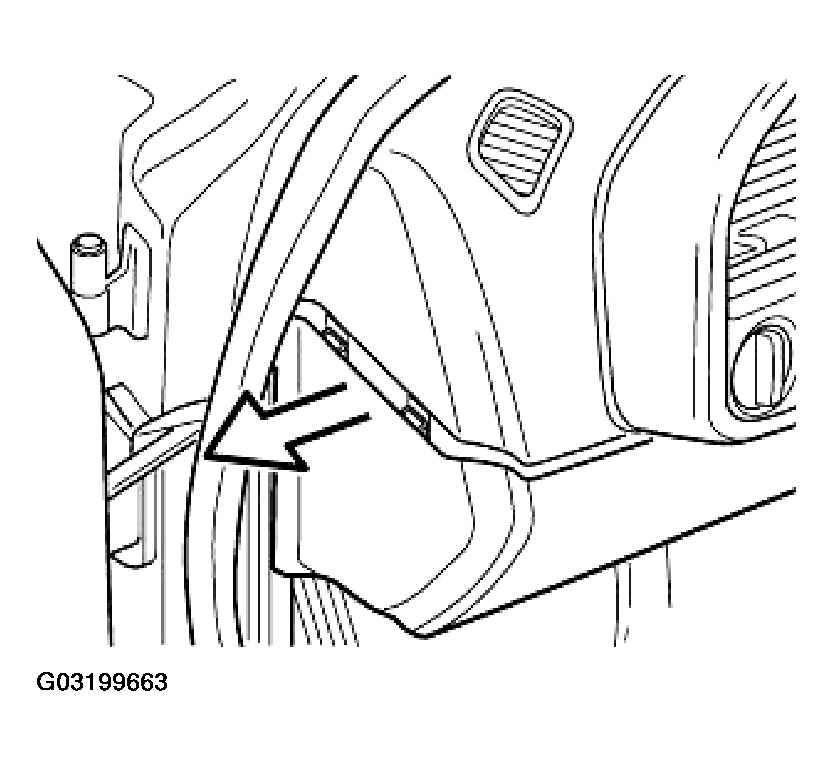

Pull bottom trim panel to the side out of the clips.

Fig 3: Pulling Bottom Trim Panel Out Of Clips

G03199663

Courtesy of BMW OF NORTH AMERICA, INC.

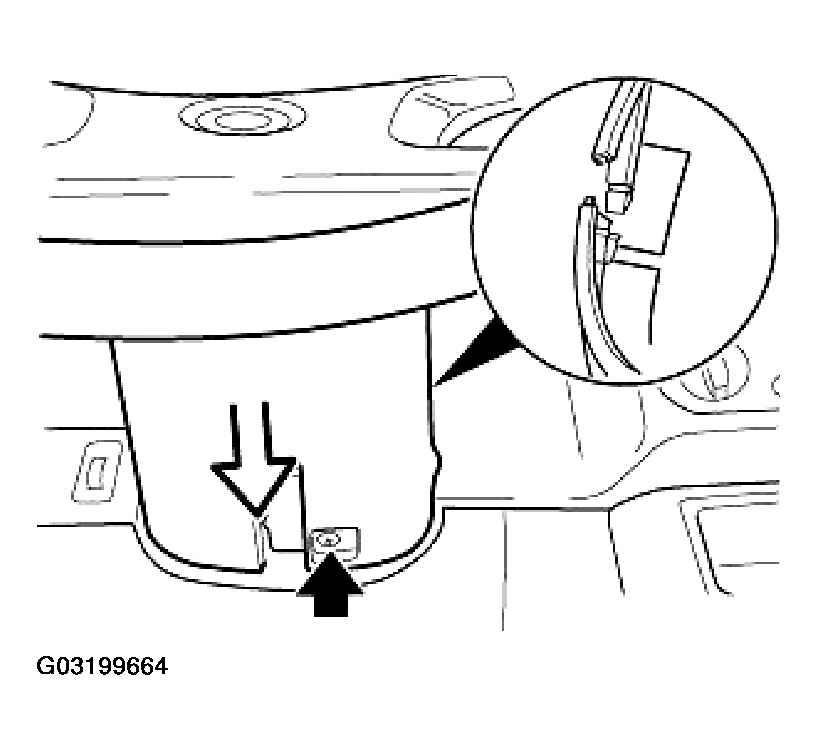

Remove screw and take off lower section of steering -column panelling.

Fig 4: Removing Lower Section Of Steering -Column Panelling

G03199664

Courtesy of BMW OF NORTH AMERICA, INC.

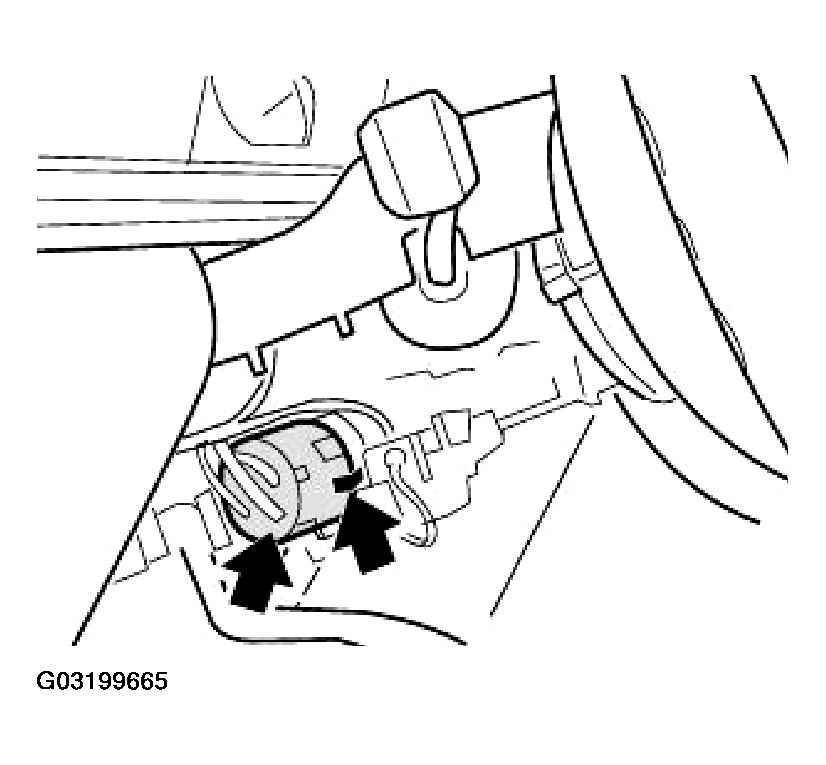

Unscrew headless screws on both sides, pull out switch. Disconnect plug connection.

Fig 5: Removing Switch

G03199665

Courtesy of BMW OF NORTH AMERICA, INC.
