(Remove intermediate pipe)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
(Remove intermediate pipe)
WARNING:
Hot surfaces
Risk of burning!
Perform all work only on components that have cooled down
Version A:

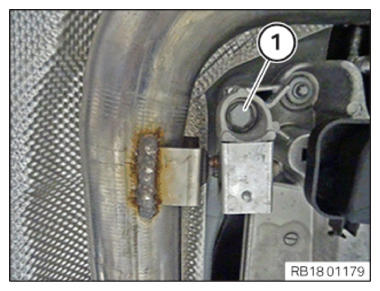

Loosen screw (1)
Courtesy of BMW OF NORTH AMERICA, INC.

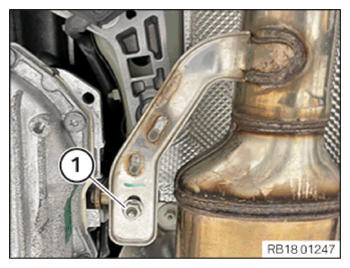

Loosen screw (1)
Courtesy of BMW OF NORTH AMERICA, INC.
Version B:

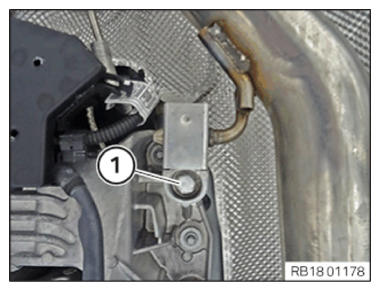

Loosen screw (1)
Courtesy of BMW OF NORTH AMERICA, INC.

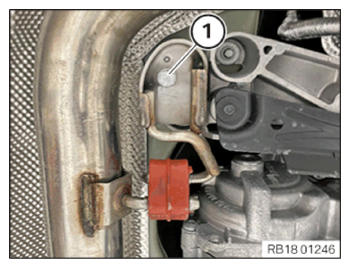

Release nut (1)
Courtesy of BMW OF NORTH AMERICA, INC.

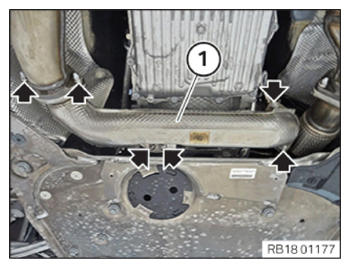

Unscrew the nuts (arrows)
Feed the intermediate pipe (1) out and remove
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
