Removing the electromechanical steering gear
WARNING:
High-voltage system
.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
WARNING:
Car may slip off the vehicle hoist where components are supported
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
NOTE:
RISK OF DAMAGE
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
- After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.
NOTE:
TECHNICAL INFORMATION
In a warranty case, you must always provide a fault memory printout with the defective part, even if the fault memory does not contain an entry.
In a warranty case, you must always provide a fault memory printout with the defective part, even if the fault memory does not contain an entry.
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
NOTE:
In a warranty case, parts that must be
returned must be returned in the original packaging and appropriately secured in it.
Non-observance leads to rejection of the warranty!
Non-observance leads to rejection of the warranty!
Preliminary work
- Refer to REMOVING FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECKING THAT NO VOLTAGE IS APPLIED .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE LATERAL HOOD SEALS .
- Refer to REMOVING THE SIDE PANEL SEAL .
- Refer to RELEASING THE WIRING HARNESS SECTION ON THE LEFT SHOCK TOWER .
- Refer to RELEASING THE WIRING HARNESS SECTION AT THE RIGHT SHOCK TOWER .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to IF INSTALLED: REMOVE THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
- Refer to REMOVING THE BOTTOM WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
- Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .

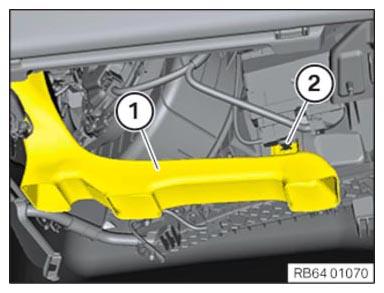

- Unclip the air duct (1) downwards at an angle at the spring clamp (2).
- Refer to DISCONNECTING THE LEFT AND RIGHT ANTI-ROLL BAR LINK FROM THE ANTI-ROLL BAR .
- Refer to LOOSENING THE TIE ROD ON THE LEFT AND RIGHT FROM THE SWIVEL BEARING .
- Refer to PARTIALLY REMOVING THE LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to IF INSTALLED: REMOVE THE SILENCER OF THE STATIONARY HEATING .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to LOWER FRONT AXLE SUPPORT .
NOTE:
RISK OF DAMAGE
Damage to the track rods or the electromechanical steering gear .
Holding the electromechanical steering gear by the track rods can damage the track rods or the electromechanical steering gear .
Damage to the track rods or the electromechanical steering gear .
Holding the electromechanical steering gear by the track rods can damage the track rods or the electromechanical steering gear .
- Hold the electromechanical steering gear only by its housing.
- Loosen screws (2) .
- Pull out electromechanical steering gear (1) laterally and remove.
