Removing the electromechanical steering gear
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
RISK OF DAMAGE
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
- After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.
NOTE:
TECHNICAL INFORMATION
In a warranty case, you must always provide a fault memory printout with the defective part, even if the fault memory does not contain an entry.
In a warranty case, you must always provide a fault memory printout with the defective part, even if the fault memory does not contain an entry.
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
- Refer to REMOVING TIE ROD ENDS ON LEFT AND RIGHT .
- Refer to REMOVING BELLOWS FOR STEERING GEAR, LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT TRACK RODS .
NOTE:
RISK OF DAMAGE
Damage to the track rods or the electromechanical steering gear .
Holding the electromechanical steering gear by the track rods can damage the track rods or the electromechanical steering gear .
Damage to the track rods or the electromechanical steering gear .
Holding the electromechanical steering gear by the track rods can damage the track rods or the electromechanical steering gear .
- Hold the electromechanical steering gear only by its housing.
NOTE:
RISK OF DAMAGE
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
- After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.
- To feed the electromechanical steering gear (2) out, twist the rack (1) one turn to the left by hand with the torsion bar (3).

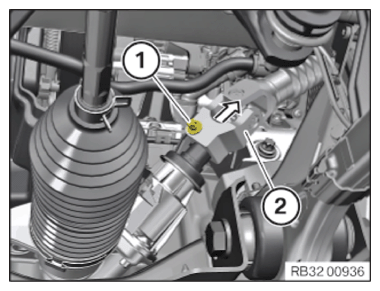

- Loosen screw (1).
- Detach the lower steering shaft (2) from the steering gear in the arrow direction.
- Use the special tool 2 472 903
or 5 A47 6E6
to release the screws.
- Release the screws (2) from the electromechanical steering gear (1).

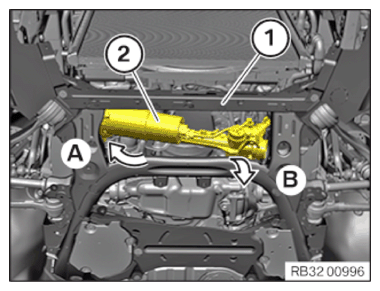

- In order to avoid damages, cover the front subframe (1) with a cloth.
- Shift the electromechanical steering gear (2) in arrow direction (A).
- Feed the electromechanical steering gear (2) in arrow direction (B) on the front subframe and remove it.
