Crimping tool

Courtesy of BMW OF NORTH AMERICA, INC.

0496847

Crimping tool 614329 Special tool

NOTE: Replaces special tool 61 4 322 from 03/2010. Available separately again from 04/2012.

Storage Location:

Individual

Courtesy of BMW OF NORTH AMERICA, INC.

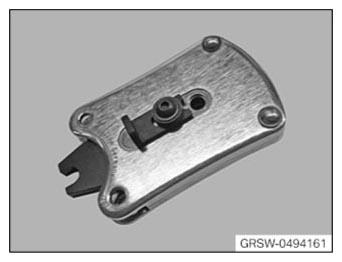

0494161

Crimping tool 614323 Special tool

NOTE: (Crimping head) For crimping optical fiber contacts

Storage Location:

Individual

Courtesy of BMW OF NORTH AMERICA, INC.

0496833

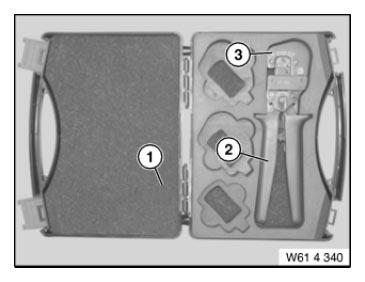

Crimping tool 614340 Required tool Special tool

NOTE: Universal crimping tool for contacts for a line cross-section of 0.35 - 2.5 mm² (without seal). From 03/2010, as a replacement for the existing SWZ 61 4 328. Delivery includes a handle in a case as a set. The die for NanoMQS contacts (2 407 378) is stored in this plastic case!

Storage Location:

Individual (Cable cabinet 1 and 2)

Individual (Cabinet 550 and 350)

Consisting of:

1 = 0496848

Case

NOTE: For storing 61 4 342 and 61 4 343

2 = 0496849

Handle

3 = 0496850

Crimping tool

NOTE: Universal crimping head for contacts up to a line cross-section of 0.35 - 2.5 mm² (replaces SWZ 61 4 328 from 03/2010)

0494158

Crimping tool 614320 Required tool Special tool

NOTE: (Crimping kit with pliers) For fiber optic cables (FOC) and cable repairs. Extended by universal crimping head 61 4 328. As from 03/2010 61 4 326 will only be available as a replacement.

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location:

Individual (Cable cabinet 1 and 2)

Individual (Cabinet 550 and 350)

Consisting of:

3 = 0494161

Crimping tool

NOTE: (Crimping head) For crimping optical fiber contacts

1 = 0494159

Handle

NOTE: Basic handle for crimping heads

2 = 0494160

Crimping tool

NOTE: (Crimping head) For strip off insulation and cutting optical fiber to length Replaced as from 03/2010 by 61 4 329 (0 496 847) .

4 = 0494162

Crimping tool

NOTE: (Crimping head) For crimping MQS contacts

6 = 0494164

Supplement

NOTE: (Replacement blade) For face-cutting optical fibers. From 03/2006, no longer included in set 61 4 320 but individually available as a replacement set . Replacement blade only suitable for 61 4 322.

5 = 0494178

Crimping tool

NOTE: (crimping head) For crimping MPQ contacts

7 = 0494320

Supplement

NOTE: (Replacement blade) With tool for replacing the knife in the stripping unit. Must be ordered separately, not included in 61 4 320 scope of delivery! Discontinued as from 03/2010 .

2 = 0496847

Crimping tool

NOTE: Replaces special tools 61 4 322 from 03/2010. Available separately again from 04/2012.

8 = 0495555

Crimping tool

NOTE: (Universal crimping head) For crimping contacts (without seal) and cable cross-sections from 0.35 - 2.5 mm . From 03/2010, 61 4 328 will no longer be supplied in kit 61 4 320. Order by way of separate special tool number 61 4 340
