Installing the Body Domain Controller (BDC)

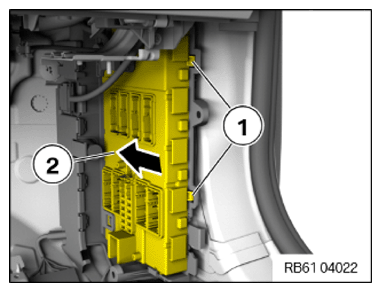

- Feed the Body Domain Controller (BDC) (2) into the holder from the side.
- Engage the Body Domain Controller (BDC) (2) at the latch mechanisms (1) of the holder.

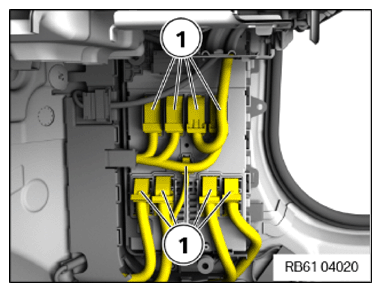

- Connect all connectors (1) and lock.

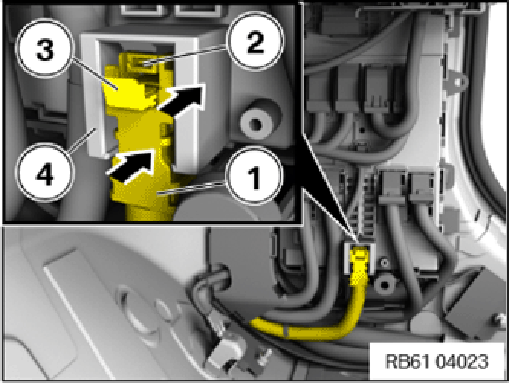

- Attach the connector of the positive battery cable (1) to the Body Domain Controller (BDC) control unit (4) in direction of arrow.
- Engage latch mechanism (2) to the connector of the positive battery cable (1).
- Close lock (3) in direction of arrow.

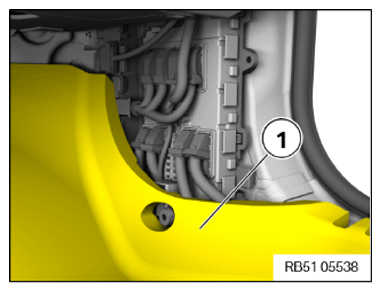

- Fold down carpet (1) and make sure it is positioned correctly.
Follow-up work
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
- Refer to INSTALLING THE BOTTOM RIGHT INSTRUMENT PANEL TRIM .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
