Installing the iDrive Controller

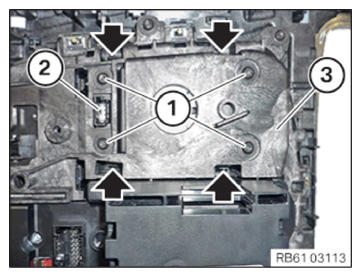

• Position the iDrive Controller (2) on the control unit (3) and snap-in at the detents (arrows).
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to ENCODE/PROGRAM CONTROL UNIT(S) .
