Remove front controller
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE CENTER CONSOLE TRIM .

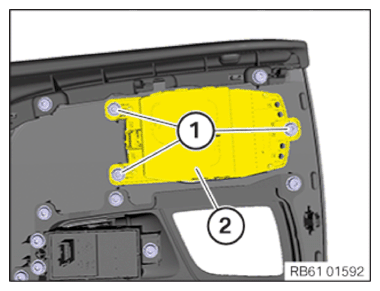

- Loosen screws (1) .
- Remove the front controller (2) .
