Frame Reference Body Dimension Rep-UEB-Rag0141-4106100 - V.2

Dimensions in mm.

Dimensional tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

  The control points shown serve to check the body and the set of attachments.

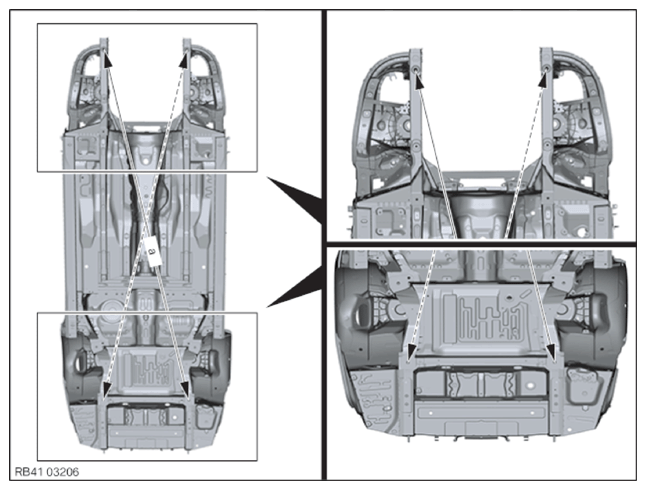

  Vehicle underbody completely

  Courtesy of BMW OF NORTH AMERICA, INC.

  Dimension a=3588 mm

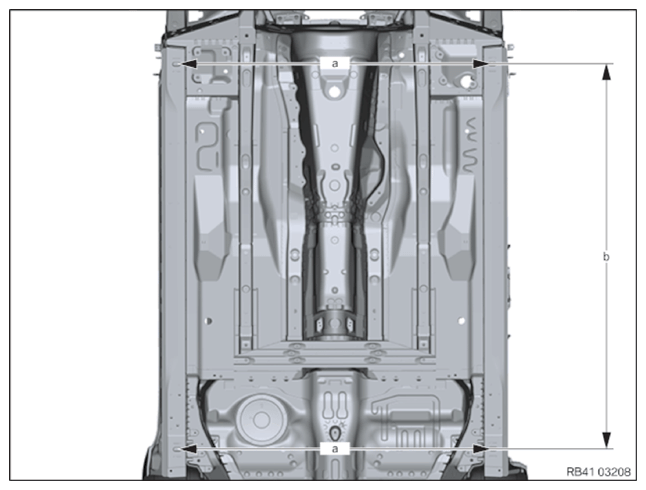

  Vehicle underbody at the mid

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension a=1548 mm

Measurement b = 1741 mm

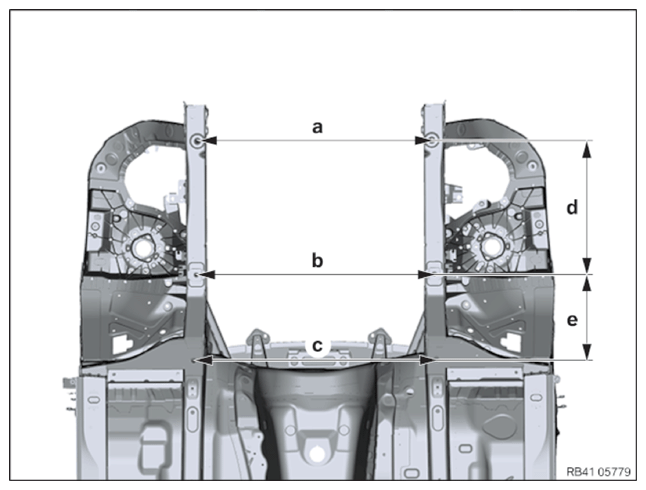

Front end bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension a=820 mm

Measurement b = 833 mm

Measurement c = 850 mm

Dimension = 468 mm

Dimension e=323 mm

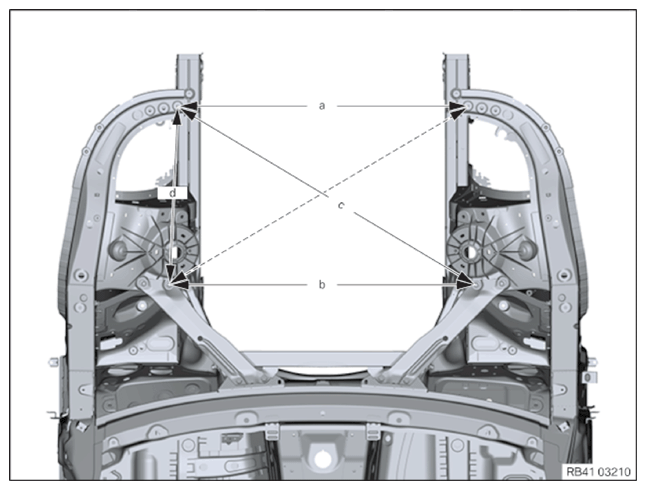

Front end top

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension a=1260 mm

Measurement b = 1204 mm

Measurement c = 1324 mm

Dimension = 484 mm

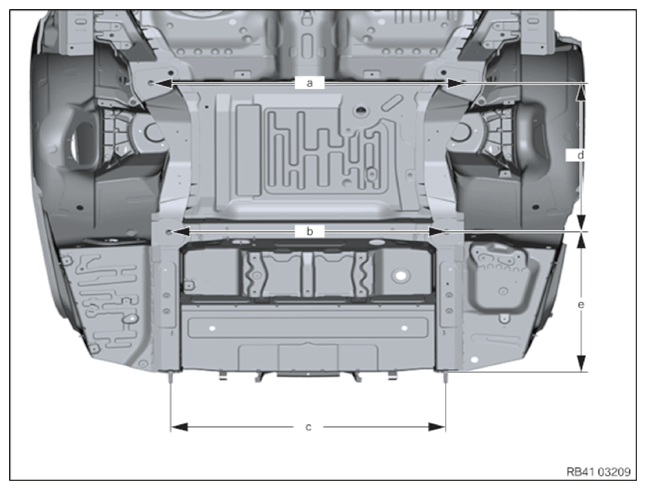

Rear end bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension a=1088 mm

Measurement b = 822 mm

Measurement c = 848 mm

Dimension = 585 mm

Dimension e=501 mm

B-pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1600 mm between attachment points of door checks.
