Installing the steering column
- Feed the steering column (1)
at installation in the steering shaft seal (2)
.
- Carefully feed in steering column (1) in arrow direction.
- Position the steering column (1) at the bolts (2) .
- Position the nuts (1) on the steering column (2) .
NOTE:
Do not fully tighten the nuts yet.
- Position the nuts (1) on the steering column (2) .
NOTE:
Tightening the nuts follows in the next work step in the sequence.
- It is mandatory to tighten the nuts in sequence (1) to (4) .
TIGHTENING TORQUES SPECIFICATION
| Steering column to dashboard support | ||
|---|---|---|
| M8 Observe tightening sequence. |
Tightening torque | 21.4 Nm |

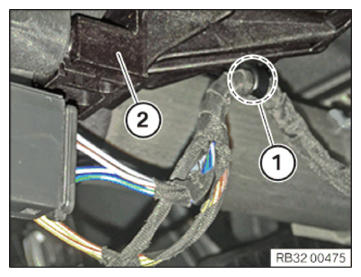

- Secure cable (1) on the steering column (2) .
Follow-up work
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING STEERING WHEEL .
- Refer to INSTALLING AIRBAG UNIT .
- Refer to INSTALLING STEERING SHAFT, BOTTOM .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to CHECKING THE STRAIGHT-AHEAD DRIVING POSITION OF THE STEERING WHEEL .
- Refer to CHECKING THE AIRBAG FOR FUNCTION .
