Installing the telematics control module
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

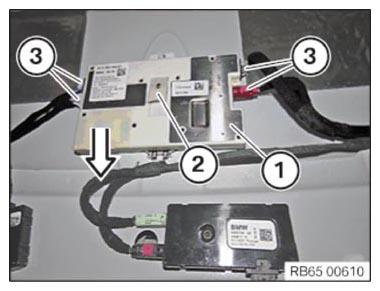

- Position the telematics control module (1) correctly and slide it in the arrow direction until lock (2) snaps in place.
- Connect and lock both connectors (3)
.
Follow-up work
- Refer to INSTALLING THE HEADLINING (LOWERED) .
- Refer to INSTALLING COAT HOOK .
- Refer to INSTALLING BOTH D-PILLAR TRIM PANELS .
- Refer to INSTALLING BOTH TRIM PANELS OF THE LUGGAGE COMPARTMENT .
- Refer to INSTALLING BOTH LUGGAGE COMPARTMENT LAMPS .
- Refer to INSTALLING BOTH BOTTOM D-PILLAR TRIM PANELS .
- Refer to INSTALL LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALL LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to INSTALLING BOTH BACKREST SIDE SECTIONS ON THE REAR SEAT BACKREST .
- Refer to INSTALLING BOTH COVERS OF SEAT BELT FINISHER STRIP .
- Refer to INSTALLING THE LEFT AND RIGHT FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING BOTH LUGGAGE COMPARTMENT COVERS .
- Refer to INSTALL THE FRONT STORAGE SHELF .
- Refer to INSTALLING REAR INTERIOR ROOF LIGHT .
- Refer to PARTIALLY INSTALL THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
- Refer to INSTALLING FRONT LEFT AND RIGHT HEAD RESTRAINTS .
- Refer to INSTALLING COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to INSTALLING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
- Refer to ACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
