12 13... Normal oscillogram (M, S, W engines only)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

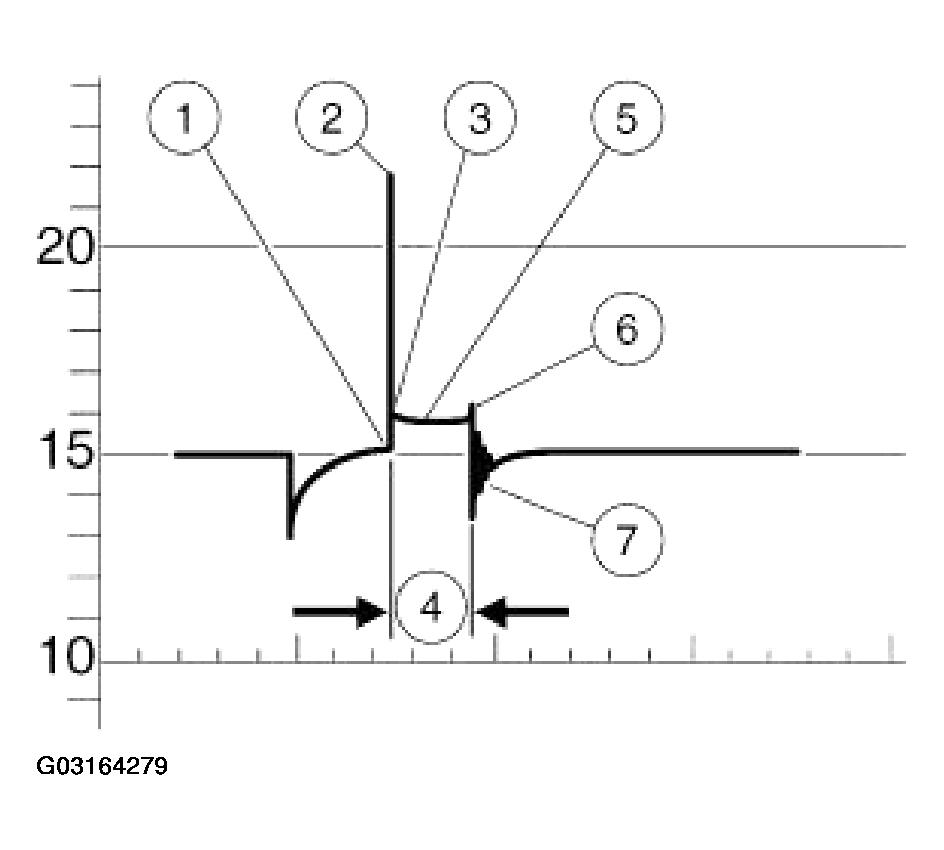

Fig 1: Identifying Normal Oscillogram
G03164279Courtesy of BMW OF NORTH AMERICA, INC.
  1. start of ignition voltage peak.
  2. Level of ignition voltage.
  3. Level of combustion voltage.
  4. Period of combustion.
  5. Combustion curve characteristics.
  6. Start of decay process.
  7. Termination oscillations.

Secondary Voltage Patterns, Beside One Another:

Evaluation of ignition voltage peaks at idle speed (this example shows an engine with 4 cylinders).

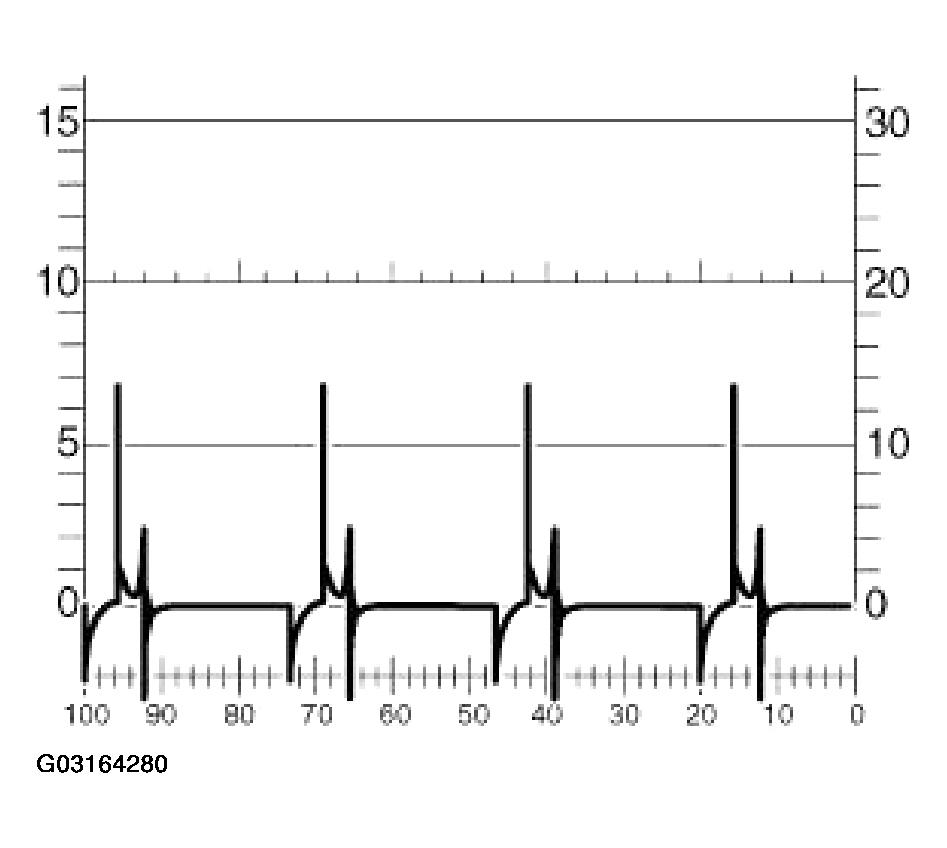

Fig 2: Secondary Voltage Patterns (Beside One Another)
G03164280Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The display of ignition voltage spikes is approx. 20-25% lower than the real value. The uniformity of all cylinders to each other is more important than the height of ignition voltage peaks. Differences of 3000...4000 V are permitted. In event of greater differences, refer to "Further fault patterns with evaluation"12 13... FURTHER FAULT PATTERNS WITH EVALUATION .

Evaluation of ignition voltage peaks at increased speed of approx. 2000 RPM (this example shows an engine with 4 cylinders).

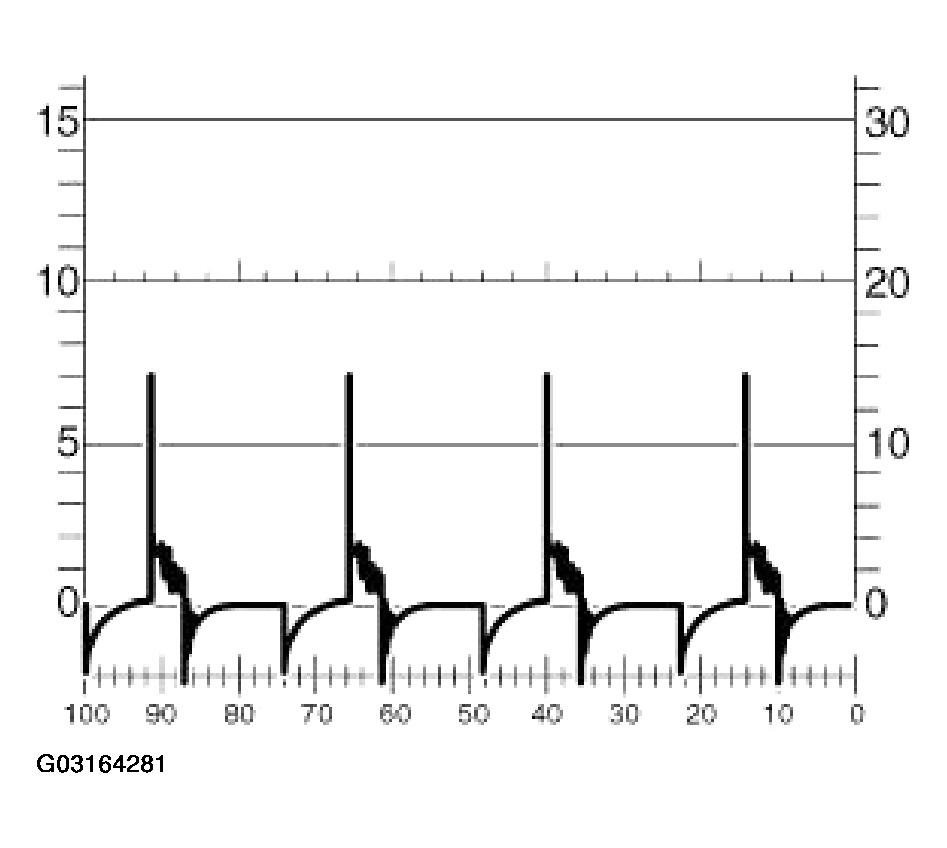

Fig 3: Voltage Blinking Patterns
G03164281Courtesy of BMW OF NORTH AMERICA, INC.

Secondary Voltage Diagrams, Superimposed:

Evaluation of combustion characteristics curve and decay characteristics at idle speed (this example shows a 4-cylinder engine).

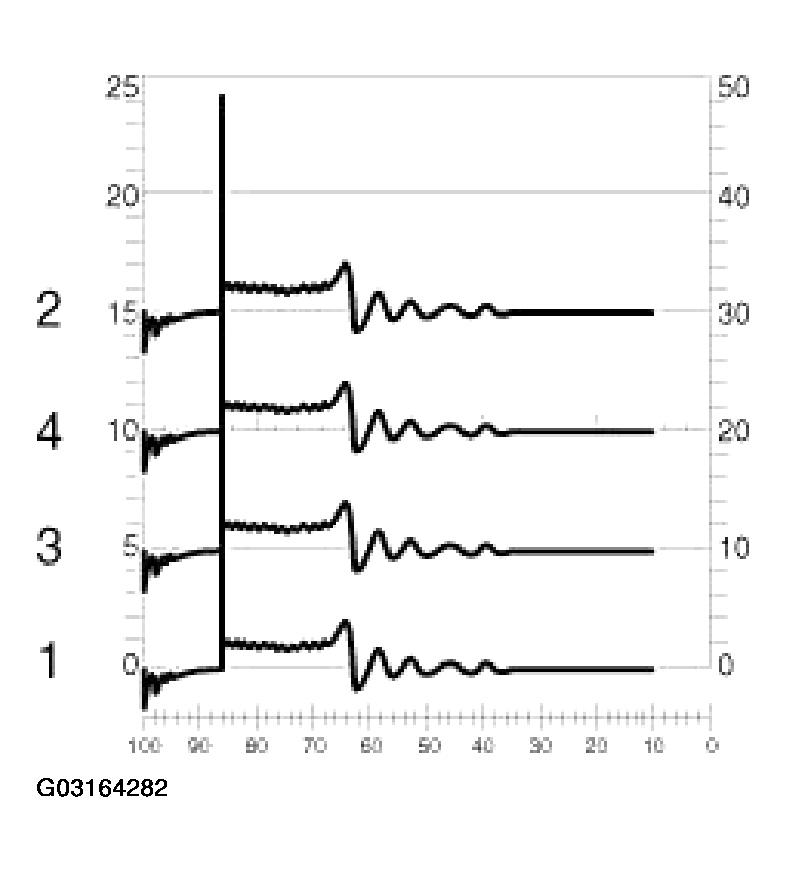

Fig 4: Secondary Voltage Diagrams (Superimposed)
G03164282Courtesy of BMW OF NORTH AMERICA, INC.

Secondary Voltage Diagrams, Consecutive:

NOTE: Only the major differences in the ignition voltage patterns are revealed by this method of comparison. The identified fault must be allocated to the relevant cylinder using the secondary voltage representation forms next to/on top of each other.

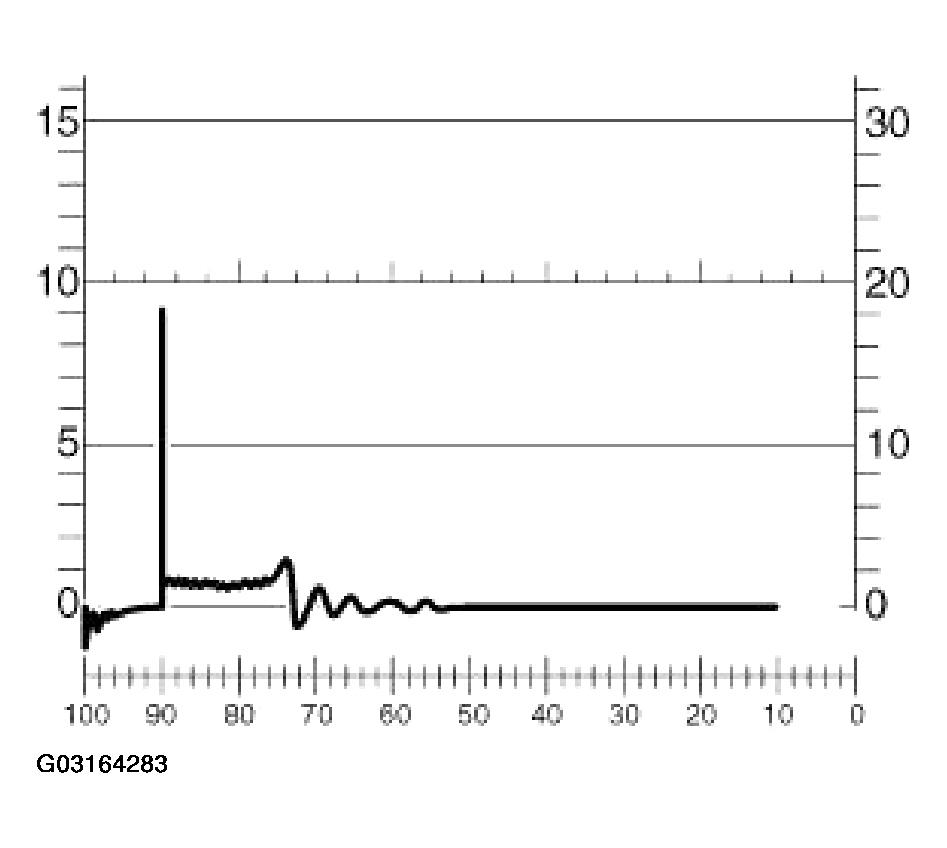

Fig 5: Secondary Voltage Diagrams (Consecutive)
G03164283Courtesy of BMW OF NORTH AMERICA, INC.
