Remove thrust field

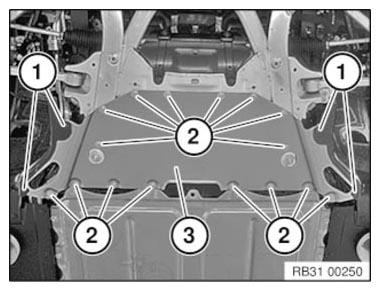

Loosen screws (1).
Variant with Range Extender:
Release coolant lines on thrust field on left and right.
Loosen screws (2).
Remove thrust field (3).
Courtesy of BMW OF NORTH AMERICA, INC.
