Remove range extender electrical machine electronics (REME).

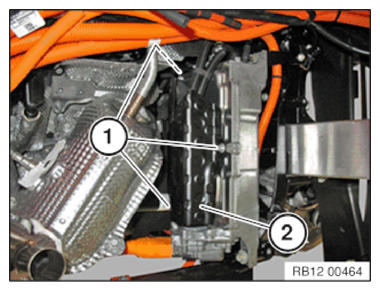

- Unscrew the bolts (1) on the heat shield.
- Guide out and remove the heat shield (2).

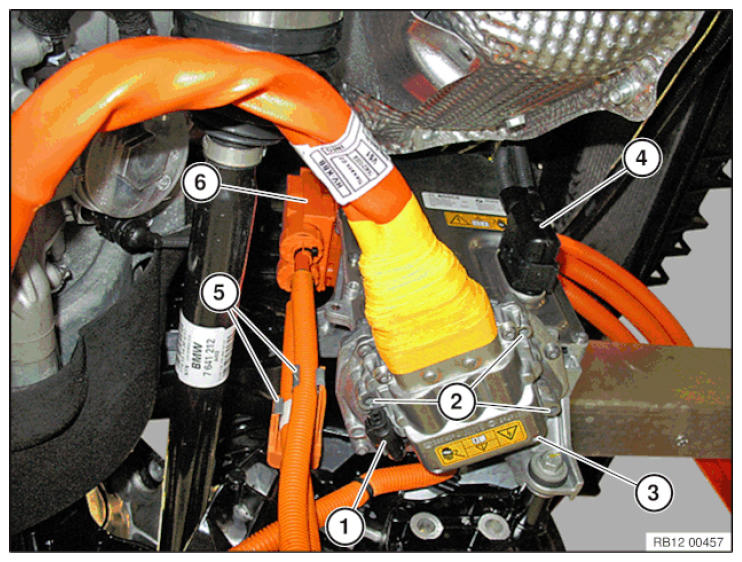

- Unlock and disconnect the high-voltage safety plug (1).
- Loosen screws (2).
- Disconnect high-voltage connector (3).
- Unlock and disconnect the signal connector (4).
- Detach the high-voltage cable from the clamps (5).
- Unlock and disconnect the connector (6) from the high-voltage cable.

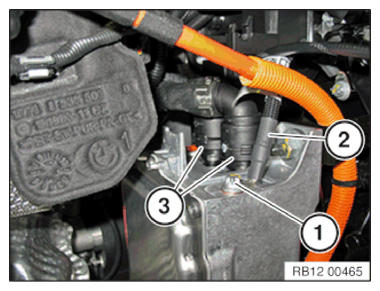

- Unscrew the screw (1) of the potential equalization line (2).
- Unlock and disconnect the coolant hoses (3).

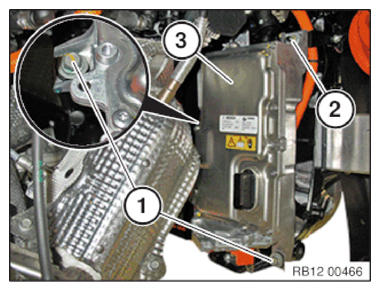

- Loosen screws (1).
- Loosen nut (2).
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Guide out the range extender electrical machine electronics (REME) (3).
