Installing the VTG control unit

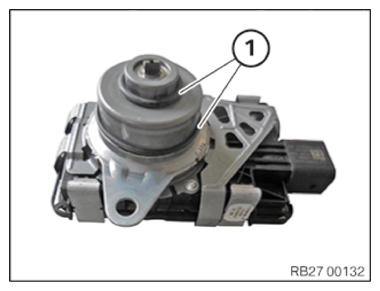

• Replace the O-rings (1)

  Parts:  O-rings

  Courtesy of BMW OF NORTH AMERICA, INC.

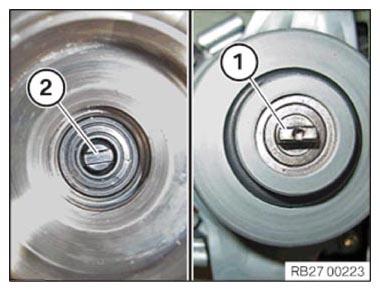

• Align the drive shaft (1) from the control unit to the drive flange (2) on the transmission
• When installing, slightly turn the transfer case control unit until the drive shaft noticeably snaps in the drive flange

  Courtesy of BMW OF NORTH AMERICA, INC.

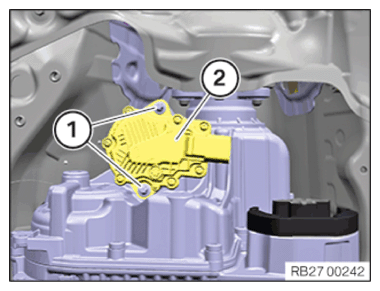

• Carefully install the VTG control unit (2)
• Attach and tighten the screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

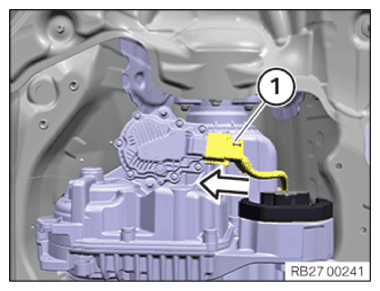

• Connect the connector (1) with the VTG control unit

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to CHECKING/TOPPING UP THE TRANSFER CASE OIL (ACTIVE TORQUE CONTROL 13-1) .
• Refer to INSTALLING TRANSMISSION CROSS MEMBER .
