Replacing the receiver audio module (RAM)
NOTE:

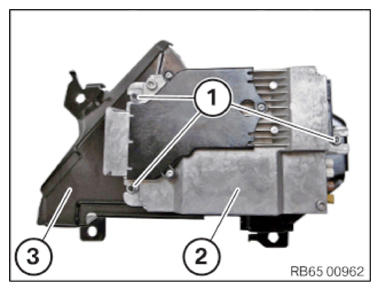

Schematic diagram is for example purposes. Some parts may differ in certain details
- Loosen nuts (1)
- Remove the receiver audio module (RAM) (2)
from the holder (3)
- Replace the receiver audio module (RAM) (2)
Parts: Receiver audio module (RAM)
- Fit the receiver audio module (RAM) (2) on the holder (3)
- Tighten nuts (1) TIGHTENING TORQUE SPECIFICATION
Amplifier/RAM to holder M5 screw Tightening torque 3 Nm Nut Tightening torque 3 Nm
