Installing the Receiver Audio Module (RAM)

NOTE: TECHNICAL INFORMATION
The number of connectors on the described component may vary depending on the equipment version.
If necessary, unlock and disconnect, or connect and lock, all other connectors.

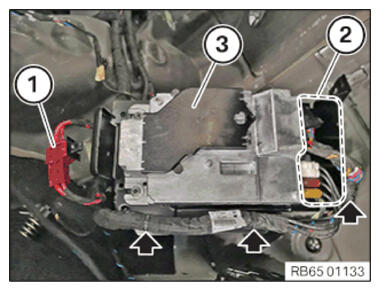

Position RAM (3) with the holder.
Connect and lock all the connectors in the marked area (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cable bracket (arrows).
Connect connectors (1) and lock.

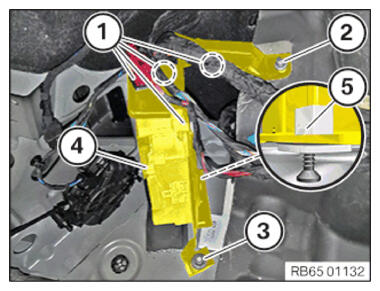

Engage RAM (4) downwards into the threaded bolt with clamp (5) and position it properly.
Tighten plastic nut (3) .

TIGHTENING TORQUES SPECIFICATIONS

Holder to body
Plastic nut	Tightening torque	2.6 Nm
Hexagon nut	Tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2) .

TIGHTENING TORQUES SPECIFICATIONS

Holder to body
Plastic nut	Tightening torque	2.6 Nm
Hexagon nut	Tightening torque	6 Nm

Clip in the cable clip (1) .

Follow-up work

Refer to INSTALLING THE FACING ON THE REAR SIDE MEMBER .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WELL IN FRONT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WELL .
Refer to INSTALLING THE LUGGAGE COMPARTMENT TRIM PANEL ON THE SIDE PANEL ON THE LEFT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
Refer to INSTALLING THE SWITCH FOR REMOTE BACKREST UNLOCKING .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to INSTALLING THE FRONT STORAGE SHELF .
Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
Refer to CLOSING THE ENGINE COMPARTMENT LID .
Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
