Installing the driver's seat module (SMFA)

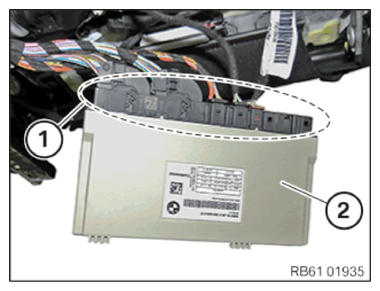

• Connect connector (1)
• Position SMFA (2)  in the holder

  Courtesy of BMW OF NORTH AMERICA, INC.

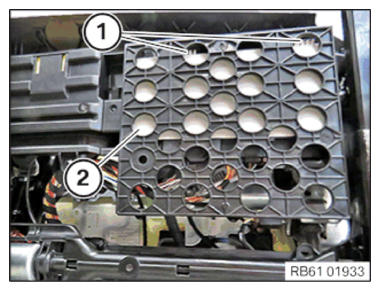

• Press the driver's seat module (SMFA) (2)  into the holder until snap-in lugs (1)  engage

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT SEAT .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
