Install Outer Wheel Arch Section With Reinforcement
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair
For additional information see: 41 00... applicable BMW Workshop Equipment
Use only approved spot welder for repair
For additional information see: 41 00... applicable BMW Workshop Equipment

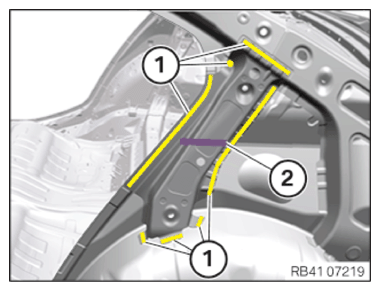

- Install the new outer wheel arch section part in areas (1)
and (2)
and weld it according to the new part preparation process

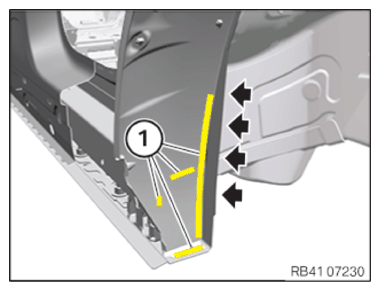

- Weld new part in the areas (1)
In this process, avoid excessively high heat input in the adjacent adhesive area (arrows)
- Weld the new part in the area (1)
Avoid applying too much heat to the adjacent adhesive area (2)

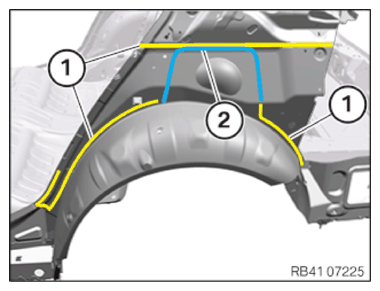

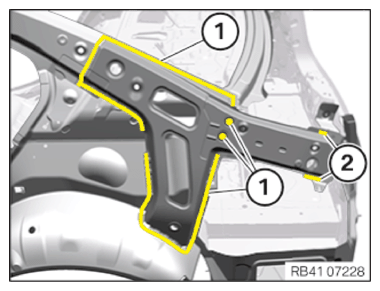

- Install new part and weld in the areas (1)
and (2) NOTE: TECHNICAL INFORMATION

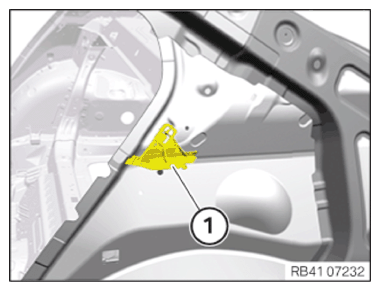

For additional information see: INSTALLING CAVITY SEALING (NOT EXPANDED) . - Apply sealant D1 to the cavity sealing (1)
Install cavity sealing (1)

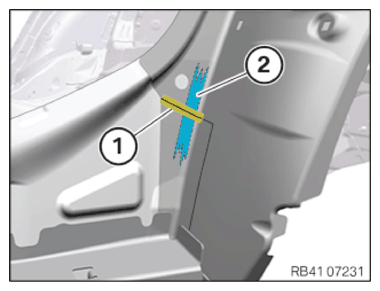

CONSUMABLE SPECIFICATIONSealant D1 (seam sealing) 310 ml 83422409985 - Apply sealant D1 to the cavity sealing (2)
- Install new part and weld in the areas (1)

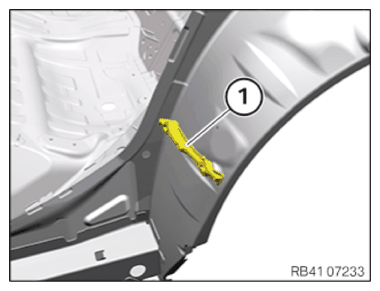

- Apply sealant D1 to the cavity sealing (1)
Install cavity sealing (1)
