Remove wiper console.

Preliminary work

• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVING LEFT AND RIGHT WIPER ARM .
• Refer to REMOVING WINDSHIELD PANEL COVER .
• Refer to REMOVING TRAILING LINK AT SPRING BOLT .

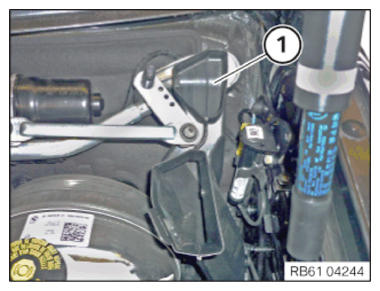

• Remove the water drain channel (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

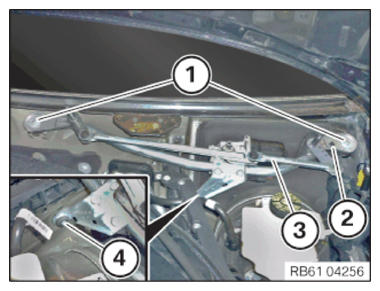

• Loosen nuts (1)
• Unclip the cable clip (2)
• Feed out and lift up the wiper console (3)  from the guide (4)

  Courtesy of BMW OF NORTH AMERICA, INC.

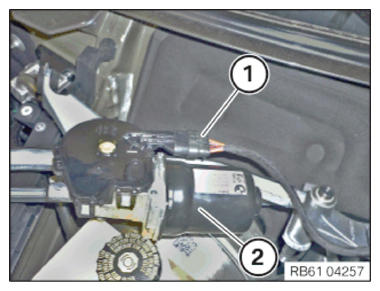

• Unlock plug connection (1)  and disconnect
• Remove the wiper console (2)

  Courtesy of BMW OF NORTH AMERICA, INC.
